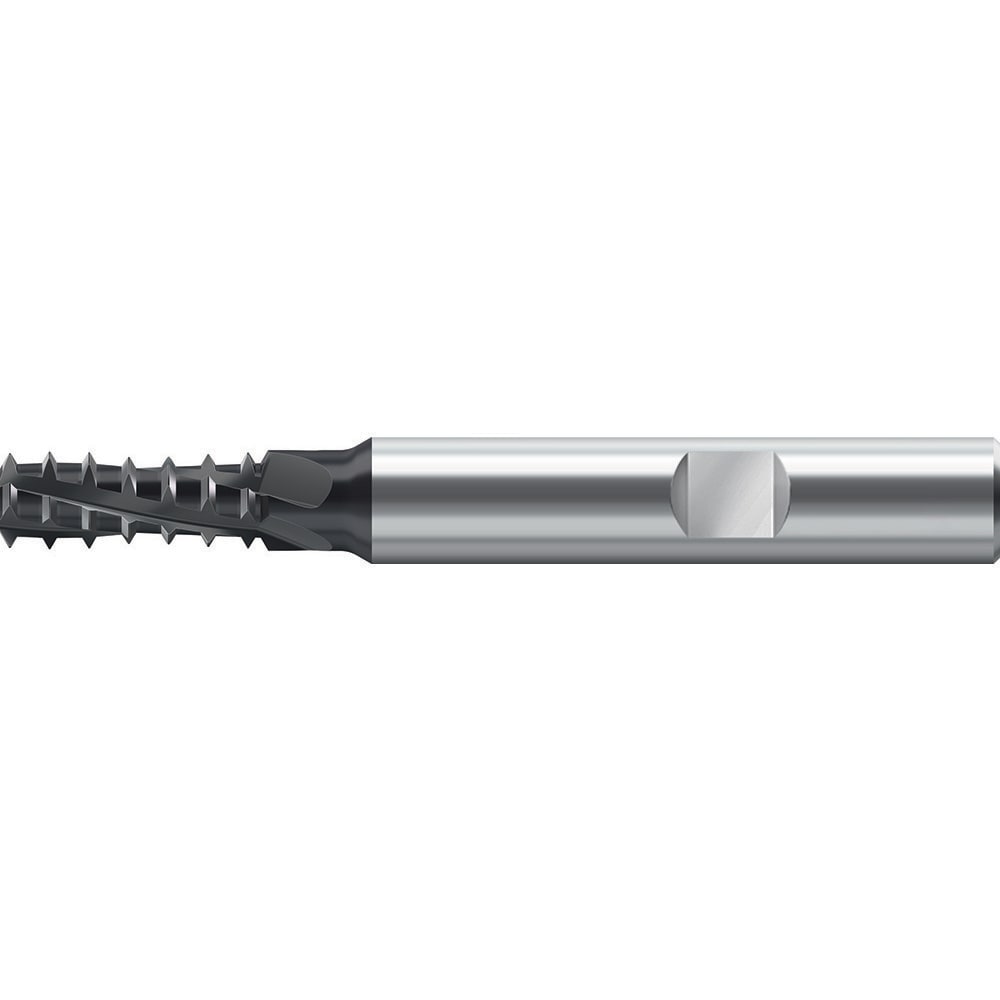

Helical Flute Thread Mill: 5/8-18, Internal, 6 Flute, 16.0000 mm Shank Dia, Solid Carbide
Item #: 53441986
Brand: Walter-Prototyp
Model #: 8117680
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 5/8-18 |
| Thread Type | Internal |
| Shank Diameter (mm) | 16.0000 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Cutting Diameter (mm) | 13.50 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.5315 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2778 |
| Length of Cut (mm) | 32.4600 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.000 |
| Overall Length (mm) | 96.0000 |
| Overall Length (Decimal Inch) | 3.7795 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Series | TC620-UNF-W5D |
| Number Of Flutes | 6 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 18 |
| UNSPSC Code | 23242117 |
