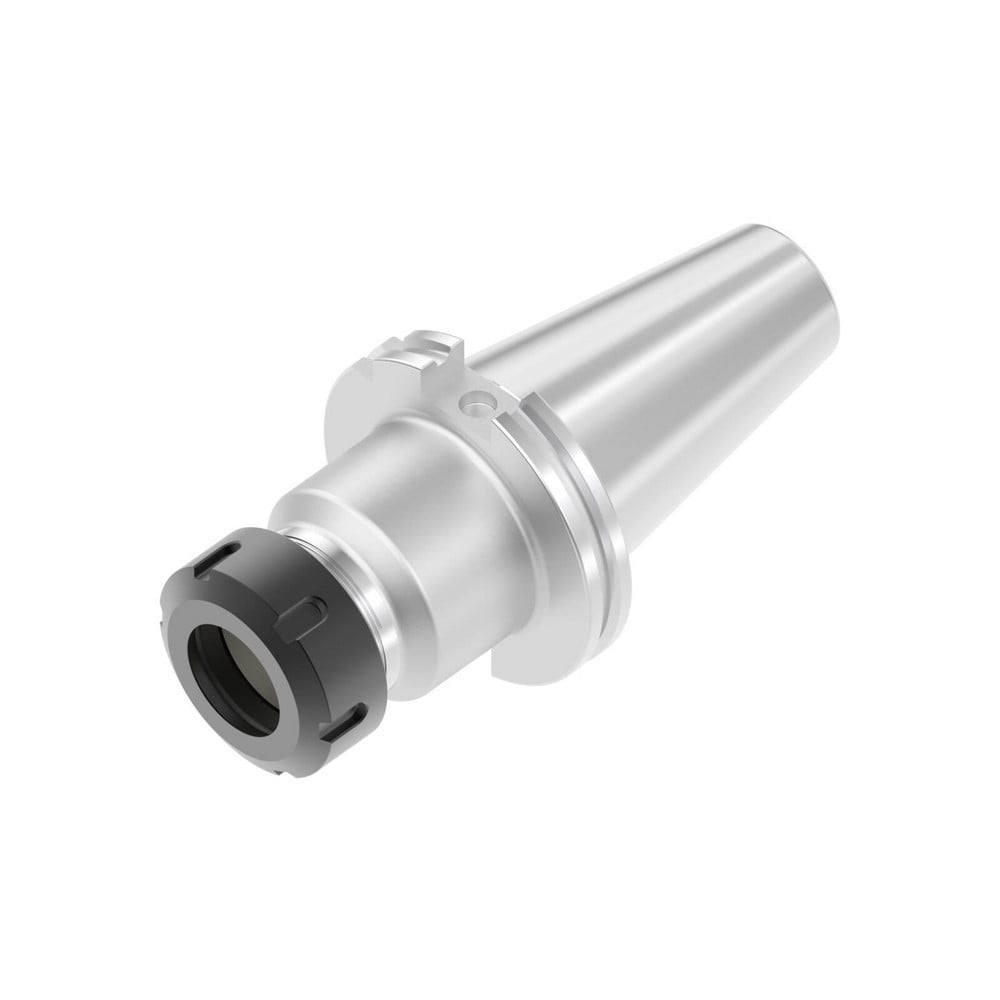

Collet Chuck: ER Collet, Taper Shank
Item #: 87881017
Brand: Seco
Model #: 10229620
Product Specifications
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper |
| Taper Size | DIN50 |
| Projection (Decimal Inch) | 6.2992 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0787 |
| Maximum Collet Capacity (Decimal Inch) | 0.7874 |
| Overall Length (Decimal Inch) | 10.3051 |
| Actuator Type | Wrench |
| Dual Contact | No |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.9685 |
| Shank Diameter (Inch) | 2-3/4 |
| Shank Diameter (Decimal Inch) | 2.7500 |
| Shank Length (Decimal Inch) | 4.0059 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.9685 |
| Nose Type | Plain |
| Type | Collet Chuck |
| Manufacturer's Part Number | DIN50AD-ER32-160 |
| UNSPSC Code | 27112808 |
| Head Length (Decimal Inch) | 5.5472 |
| Balanced To Rpm | 15000 |
| Quick Change | No |
| For Use With | ER Collets |
| Country of Origin | France |
