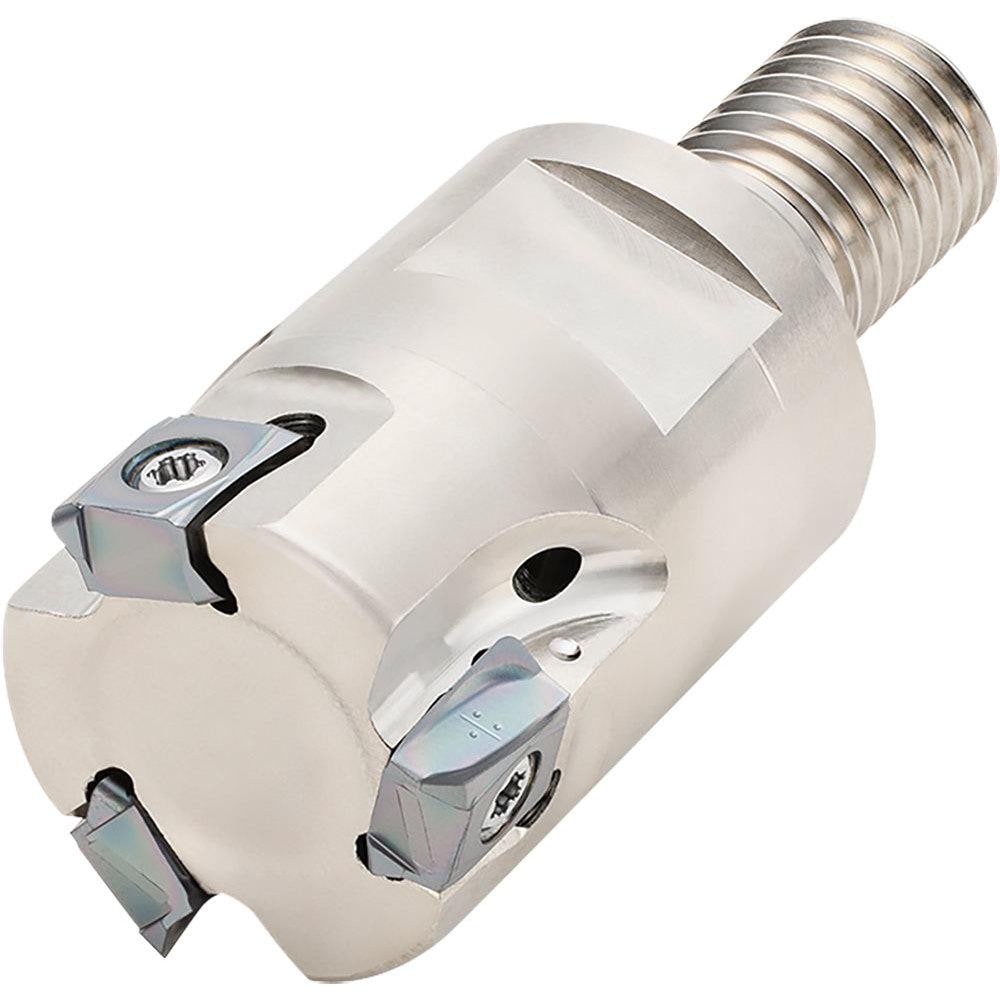

Modular Milling Cutting Unit Heads; System Size: M16; Cutting Direction: Right Hand; Cutting Diameter (Decimal Inch): 1-1/4; Insert Style: MA90; Maximum Depth of Cut (Decimal Inch): 0.4724; Maximum Depth of Cut (mm): 12.00
Item #: 68877646
Brand: Kyocera
Model #: THN08796
Product Specifications
| System Size | M16 |
| Cutting Direction | Right Hand |
| Cutting Diameter (Decimal Inch) | 1-1/4 |
| Insert Style | MA90 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Head Connection Size | 24 mm |
| Number of Cutter Inserts | 3 |
| Cutting Width (Decimal Inch) | 1.2500 |
| Head Length Projection (mm) | 40.00 |
| Depth Of Cut | 0.4724 |
| Head Length Projection (Decimal Inch) | 1.5748 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Head Length (Decimal Inch) | 1.5748 |
| Series | MA90 |
| UNSPSC Code | 23242106 |
| System Size | M16 |
| Cutting Direction | Right Hand |
| Cutting Diameter (Decimal Inch) | 1-1/4 |
| Insert Style | MA90 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Head Connection Size | 24 mm |
| Number of Cutter Inserts | 3 |
| Cutting Width (Decimal Inch) | 1.2500 |
| Head Length Projection (mm) | 40.00 |
| Depth Of Cut | 0.4724 |
| Head Length Projection (Decimal Inch) | 1.5748 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Head Length (Decimal Inch) | 1.5748 |
| Series | MA90 |
| UNSPSC Code | 23242106 |
| MSC Part # | 68877646 |
| Mfr Part # | THN08796 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
