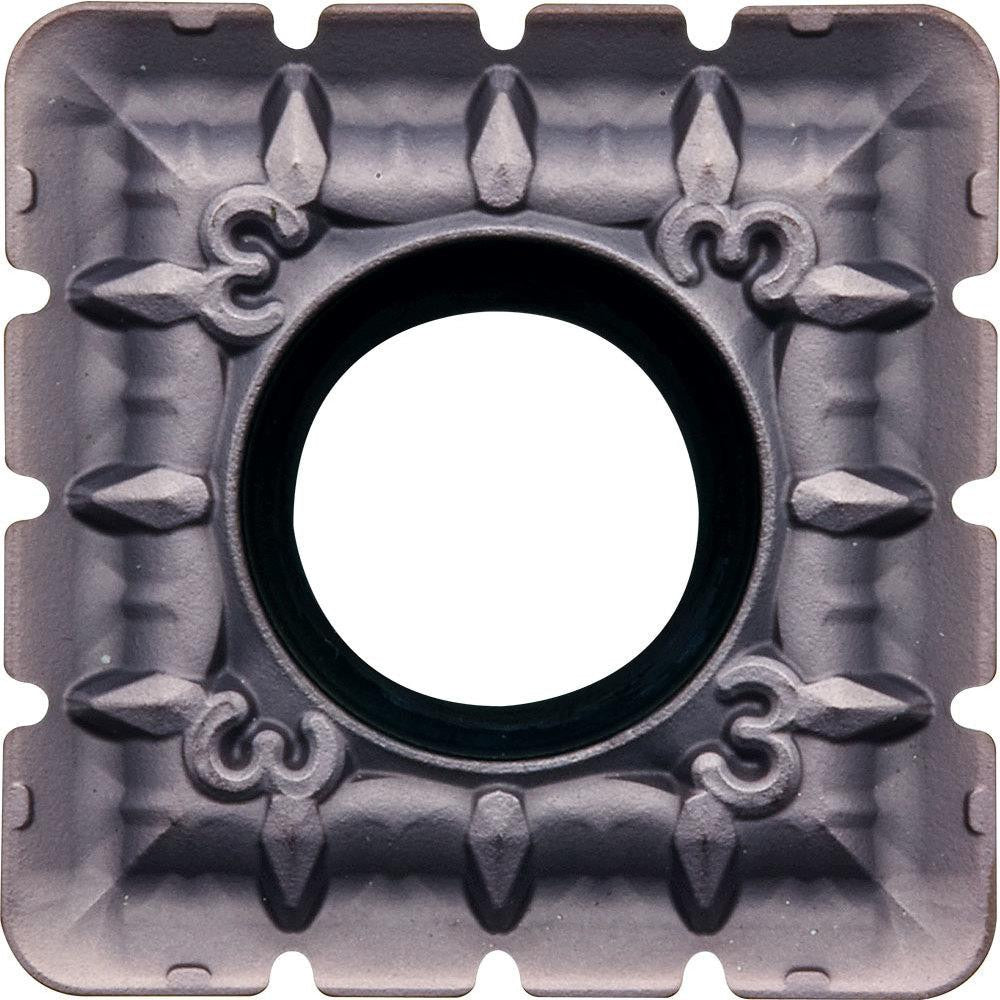

Milling Insert: SPMT180616EN-NB3 PR1810, Carbide
Item #: 86783792
Brand: Kyocera
Model #: TLS00149
Product Specifications
| Insert Style | SPMT |
| Insert Size | 180616 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Thickness (mm) | 6.3500 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 11.000 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.7087 |
| Inscribed Circle (mm) | 18.00 |
| Corner Radius (Inch) | 1/16 |
| Insert Hand | Neutral |
| Series | MSRS Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.8000 |
| Hole Diameter (Decimal Inch) | 0.2677 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SPMT180616ENNB3PR1810 |
| Iso Code | SPMT180616EN-NB3 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SPMT180616ENNB3PR1810 |
| Chip Breaker | EN-NB3 |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.7087 |
| Width (mm - 2 Decimals) | 18.00 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
