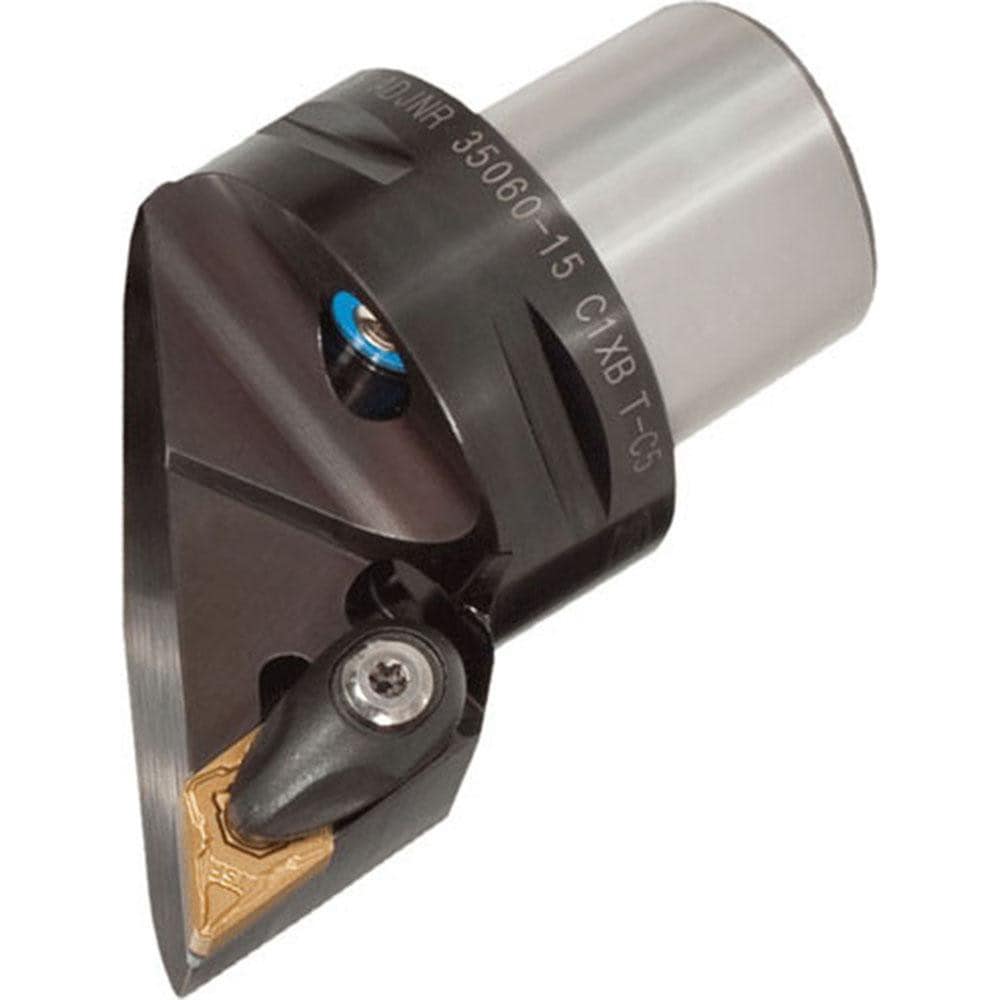

Modular Turning & Profiling Head: Left Hand
Item #: 64153190
Brand: Tungaloy
Model #: 6745396
Product Specifications
| System Size | C4 |
| Cutting Direction | Left Hand |
| Compatible Insert Style | DN.. |
| Compatible Insert Size Code | 33. |
| Internal or External | Internal & External |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Series | ADJN |
| Head Connection Size | C4 |
| Cutting Tool Application | Facing; Turning |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 1.9690 |
| Maximum Hole Depth (Decimal Inch) | 1.9690 |
| Minimum Hole Diameter (Decimal Inch) | 5.7000 |
| UNSPSC Code | 23242100 |
| System Size | C4 |
| Cutting Direction | Left Hand |
| Compatible Insert Style | DN.. |
| Compatible Insert Size Code | 33. |
| Internal or External | Internal & External |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Series | ADJN |
| Head Connection Size | C4 |
| Cutting Tool Application | Facing; Turning |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 1.9690 |
| Maximum Hole Depth (Decimal Inch) | 1.9690 |
| Minimum Hole Diameter (Decimal Inch) | 5.7000 |
| UNSPSC Code | 23242100 |
| MSC Part # | 64153190 |
| Mfr Part # | 6745396 |
| Country of Origin Country of Origin is subject to change | Japan |
