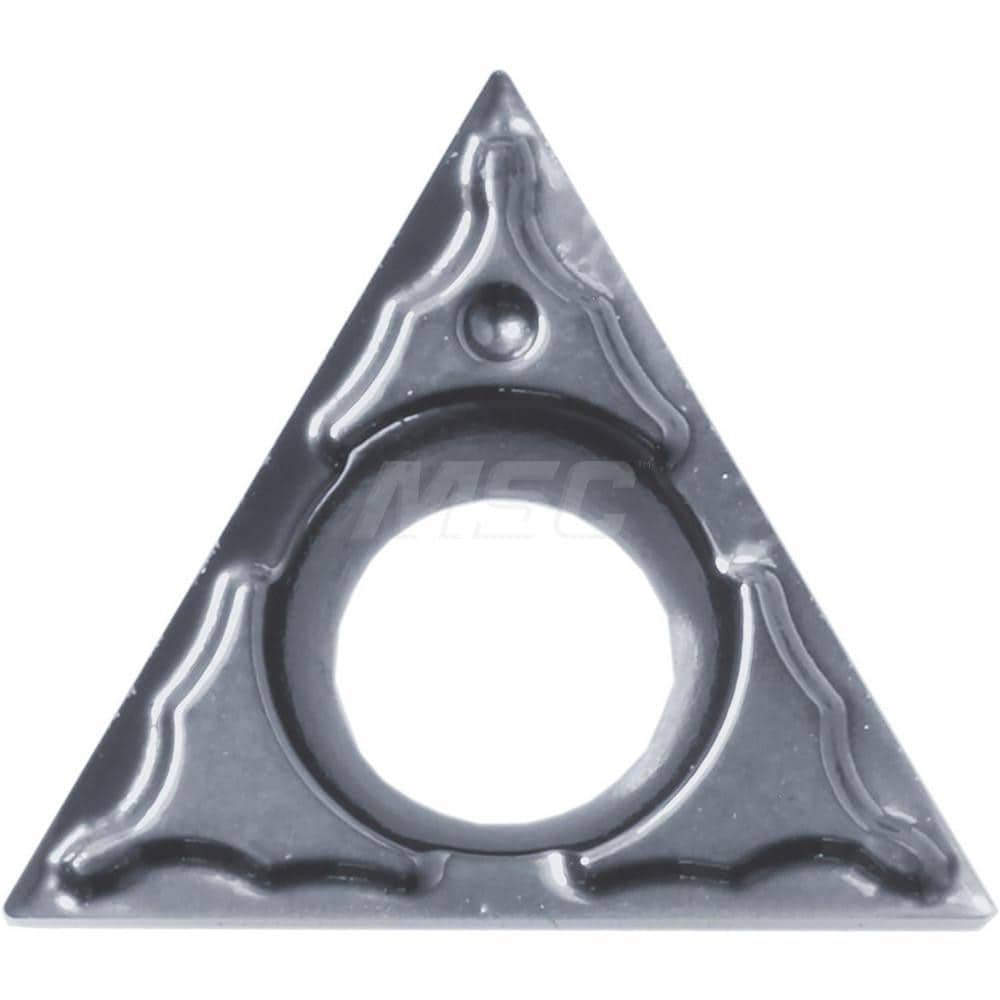

Boring Inserts; Insert Style: TBGT; Insert Size Code: 12105; Insert Material: Carbide; Material Grade: S20, S30, M40, M30; Manufacturer Grade: PR1535; Inscribed Circle (Inch): 5/32
Item #: 18255943
Brand: Kyocera
Model #: TLC05526
Product Specifications
| Insert Style | TBGT |
| Insert Size Code | 12105 |
| Insert Material | Carbide |
| Material Grade | S20; S30; M40; M30 |
| Manufacturer Grade | PR1535 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (Inch) | 1/128 |
| Relief Angle | 5 |
| Rake | Positive |
| Chipbreaker | CF |
| Series | ISOI |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Superalloys |
| Primary Workpiece Material Code | S; M |
| Iso Code | TBGT060102MP-CF |
| Rake Angle | 20 |
| Manufacturers Catalog Number | TLC05526 |
| Length (Decimal Inch - 4 Decimals) | 0.2364 |
| Width (Decimal Inch - 4 Decimals) | 0.2364 |
| Coating/Finish | MEGACOAT NANO |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0788 |
