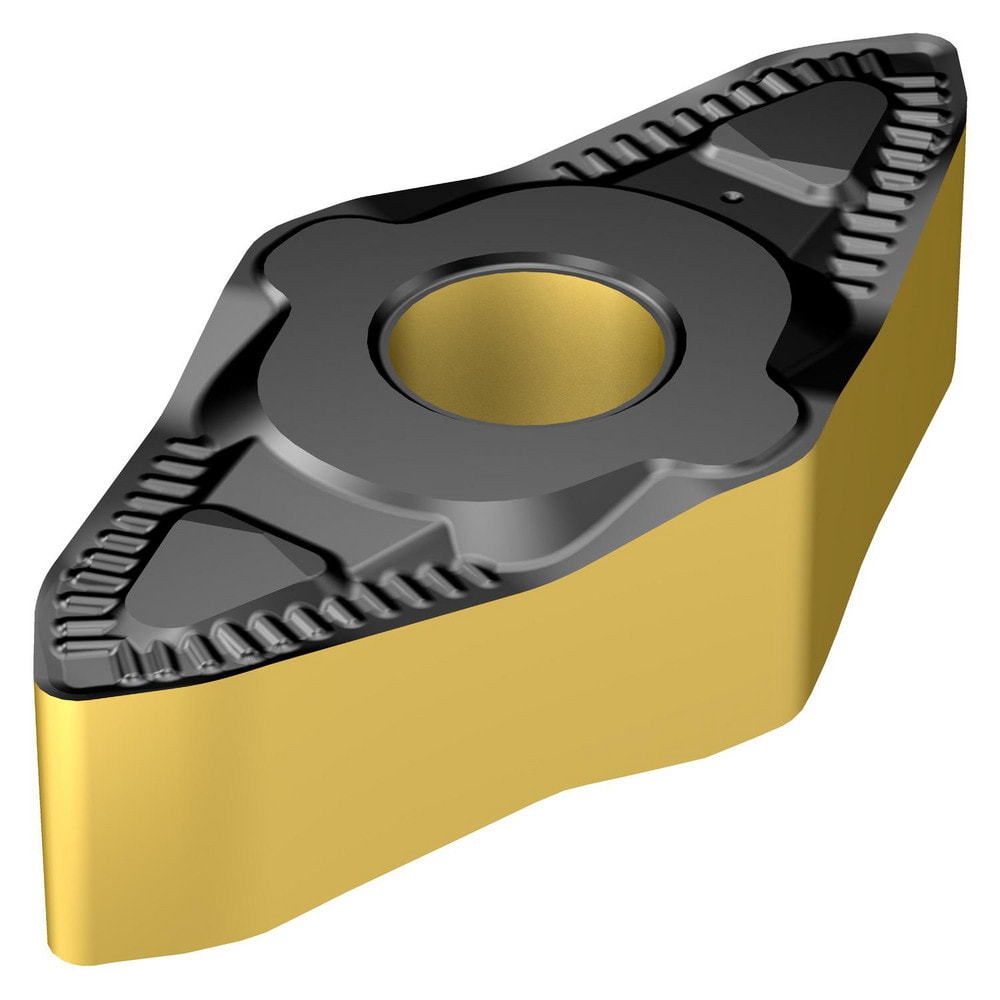

Turning Insert: CP-B1208D-M5 4425, Carbide
Item #: 29889540
Brand: Sandvik Coromant
Model #: 8180201
Product Specifications
| ANSI Insert Code | CP-B |
| ISO Insert Code | CP-B1208 |
| Relief Angle | 0 |
| Insert Style | CP-B |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer Grade | 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 6.00 |
| Insert Thickness (Decimal Inch) | 0.2362 |
| Series | CoroTurn Prime |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Insert Material | Carbide |
| Insert Shape | Non-ISO Specialty Shapes |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | Specialty/Non-Standard |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Screw; Clamp |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | CP-B1208D-M5 4425 |
| Manufacturers Catalog Number | CP-B1208D-M5 4425 |
| Stocking Category | Direct Ship |
| Chip Breaker | M5 |
| Rake Angle | 7 |
| ISO Size Code | 1208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1208 |
