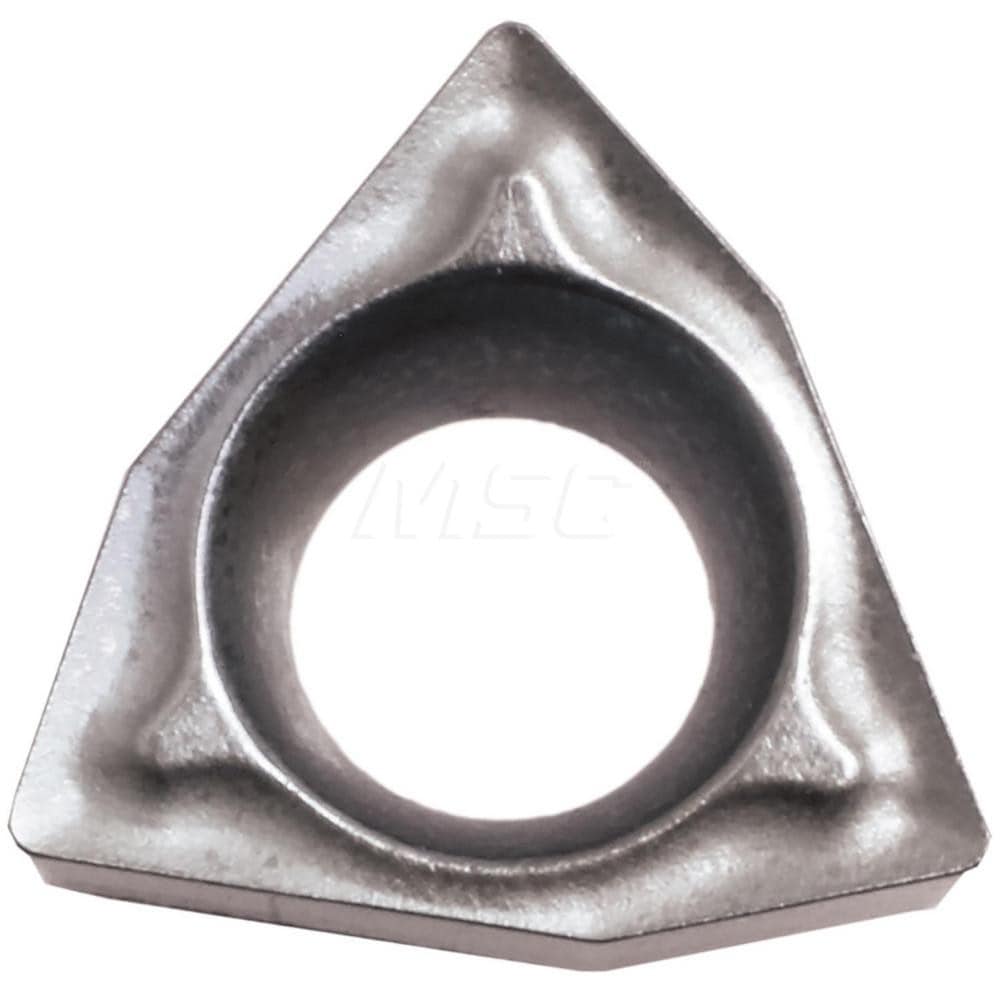

Boring Inserts; Insert Style: WBMT; Insert Size Code: 1211; Insert Material: Cermet; Material Grade: P01, P10; Manufacturer Grade: TN610; Inscribed Circle (Inch): 5/32
Item #: 18253609
Brand: Kyocera
Model #: TSS08502
Product Specifications
| Insert Style | WBMT |
| Insert Size Code | 1211 |
| Insert Material | Cermet |
| Material Grade | P01; P10 |
| Manufacturer Grade | TN610 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 5 |
| Rake | Positive |
| Chipbreaker | DP |
| Series | ISOI |
| Coating Process | Uncoated |
| Included Angle | 80 |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | WBMT060104L-DP |
| Rake Angle | 14 |
| Manufacturers Catalog Number | TSS08502 |
| Length (Decimal Inch - 4 Decimals) | 0.3940 |
| Width (Decimal Inch - 4 Decimals) | 0.394 |
| Coating/Finish | TiCN |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.1313 |
