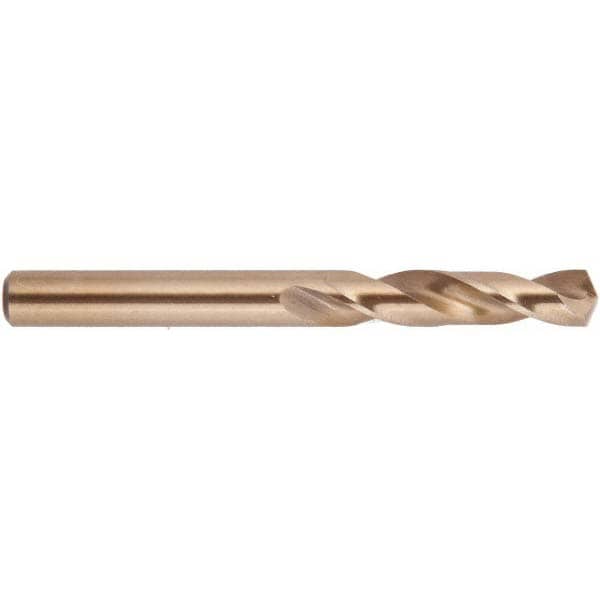

Screw Machine Length Drill Bit: Letter Y, 135 deg Point, Cobalt
Item #: 58815093
Brand: National Twist Drill
Model #: 014402AW
Product Specifications
| Drill Bit Size (Letter) | Y |
| Drill Bit Size (Decimal Inch) | 0.4040 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Straw |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Titanium |
| Point Type | Split Point |
| Shank Type | Straight |
| Overall Length (Decimal Inch) | 3.3125 |
| Overall Length (Inch) | 3-5/16 |
| Series | 316C |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | Straw |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-3/8 |
| Shank Length (Decimal Inch) | 1.3750 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Flute Length (Decimal Inch) | 1.9375 |
| Flute Length (Inch) | 1-15/16 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Letter) | Y |
| Drill Bit Size (Decimal Inch) | 0.4040 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Straw |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Titanium |
| Point Type | Split Point |
| Shank Type | Straight |
| Overall Length (Decimal Inch) | 3.3125 |
| Overall Length (Inch) | 3-5/16 |
| Series | 316C |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | Straw |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-3/8 |
| Shank Length (Decimal Inch) | 1.3750 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Flute Length (Decimal Inch) | 1.9375 |
| Flute Length (Inch) | 1-15/16 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| UNSPSC Code | 23241635 |
| MSC Part # | 58815093 |
| Mfr Part # | 014402AW |
| Country of Origin Country of Origin is subject to change | VARIOUS |
