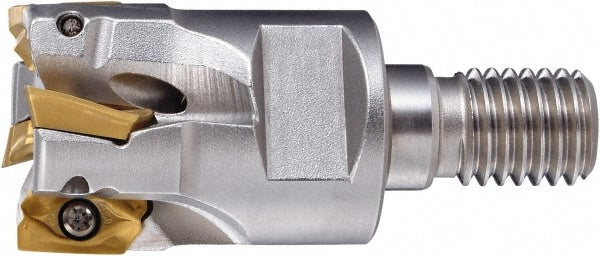

Indexable Square-Shoulder End Mill: PSE11R063ASF8-2, 5/8" Cut Dia, 1.063" Max Depth of Cut, M8 Modular Connection Shank
Item #: 55702914
Brand: OSG
Model #: 52601000
Product Specifications
| Cutting Diameter | 0.6250 in |
| Cutting Diameter | 5/8 |
| Overall Length (Decimal Inch) | 1.0630 |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Cutter Style | PSE |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52601 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 1.063 |
| Modular Connection Size | M8 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Cutting Diameter | 0.6250 in |
| Cutting Diameter | 5/8 |
| Overall Length (Decimal Inch) | 1.0630 |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Cutter Style | PSE |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52601 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 1.063 |
| Modular Connection Size | M8 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| MSC Part # | 55702914 |
| Mfr Part # | 52601000 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
