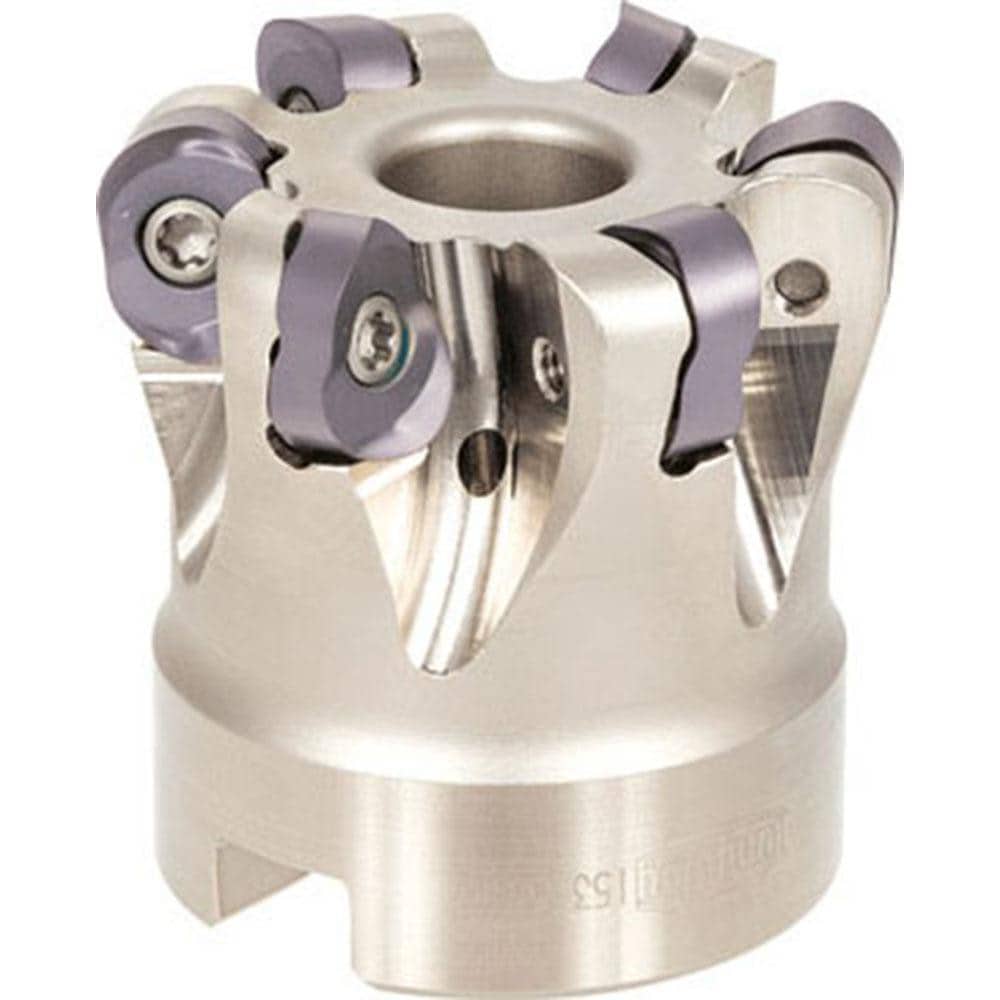

Indexable Copy Face Mills; Minimum Cutting Diameter (mm): 39.60; Cutting Diameter (mm): 52.00; Maximum Cutting Diameter (mm): 52.00; Maximum Depth of Cut (mm): 6.00
Item #: 63759559
Brand: Tungaloy
Model #: 6735272
Product Specifications
| Minimum Cutting Diameter (mm) | 39.60 |
| Cutting Diameter (mm) | 52.00 |
| Maximum Cutting Diameter (mm) | 52.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | LNMX0607R6-MJ |
| Maximum Ramping Angle | 2.5 |
| Cutter Style | TXLN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | TXLN |
| Hub Diameter (mm) | 49.000 |
| Keyway Width (mm) | 10.40 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Complete Insert Compatibility | LNMX0607R6-MJ |
| Number Of Cutter Inserts | 5 |
| Overall Diameter (Mm - 4 Decimals) | 48.0000 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Minimum Cutting Diameter (mm) | 39.60 |
| Cutting Diameter (mm) | 52.00 |
| Maximum Cutting Diameter (mm) | 52.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | LNMX0607R6-MJ |
| Maximum Ramping Angle | 2.5 |
| Cutter Style | TXLN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | TXLN |
| Hub Diameter (mm) | 49.000 |
| Keyway Width (mm) | 10.40 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Complete Insert Compatibility | LNMX0607R6-MJ |
| Number Of Cutter Inserts | 5 |
| Overall Diameter (Mm - 4 Decimals) | 48.0000 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| MSC Part # | 63759559 |
| Mfr Part # | 6735272 |
| Country of Origin Country of Origin is subject to change | Japan |
