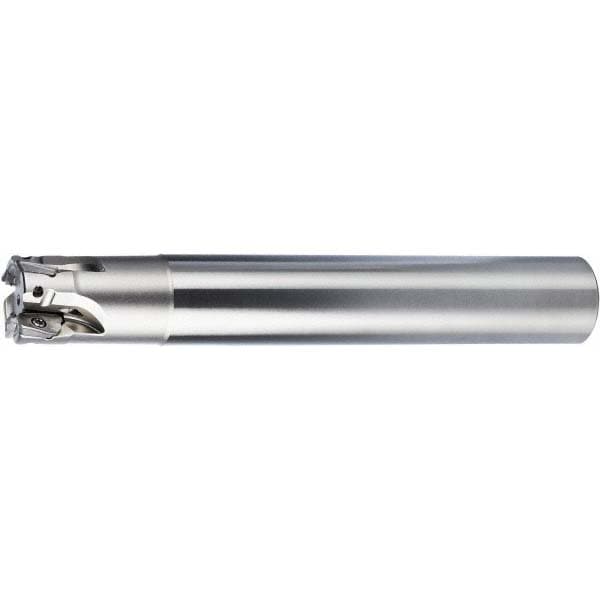

Indexable Square-Shoulder End Mill: PSE11R100FA100-3L, 1" Cut Dia, 2.756" Max Depth of Cut, 1" Dia Weldon Flat Shank
Item #: 55703474
Brand: OSG
Model #: 7801349
Product Specifications
| Cutting Diameter | 1.0000 in |
| Cutting Diameter | 1 |
| Overall Length (Decimal Inch) | 5.0350 |
| Maximum Depth of Cut (Decimal Inch) | 2.7560 |
| Cutter Style | PSE |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78013 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 5.035 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Cutting Diameter | 1.0000 in |
| Cutting Diameter | 1 |
| Overall Length (Decimal Inch) | 5.0350 |
| Maximum Depth of Cut (Decimal Inch) | 2.7560 |
| Cutter Style | PSE |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78013 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 5.035 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| MSC Part # | 55703474 |
| Mfr Part # | 7801349 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
