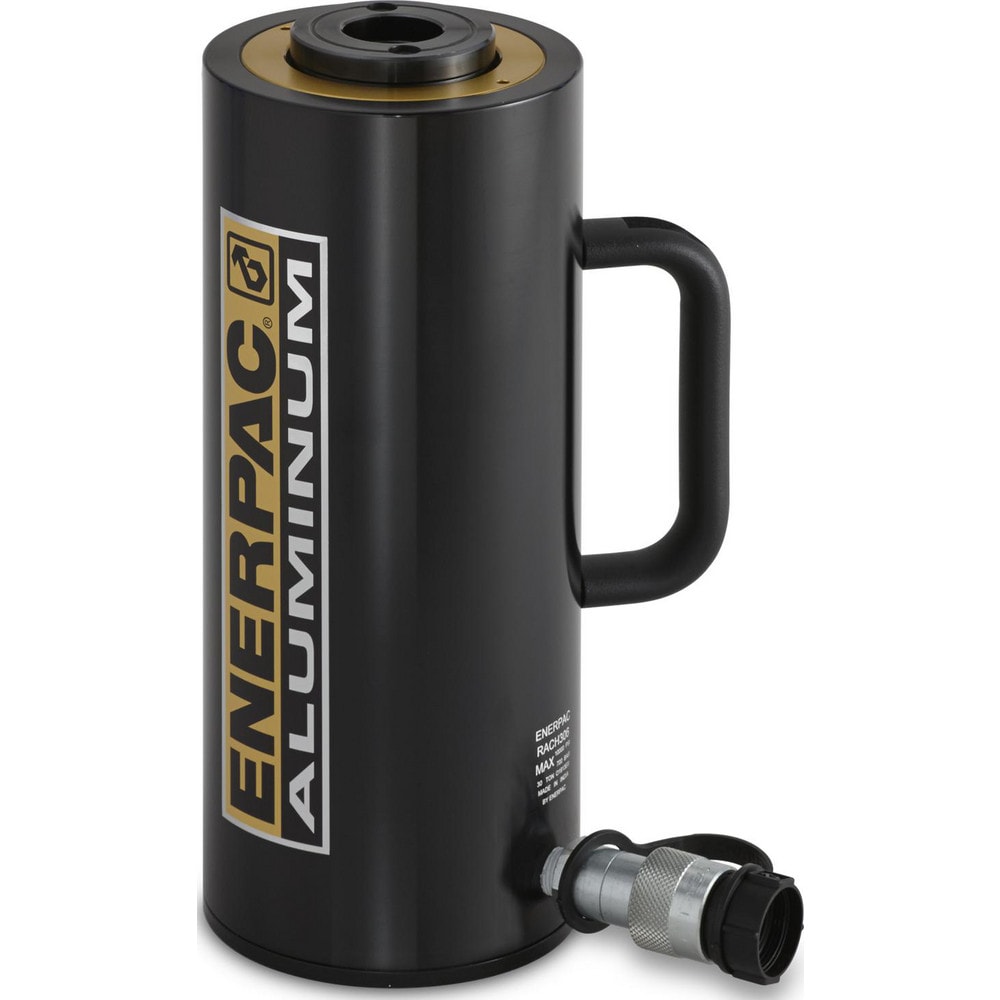

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 40; Stroke Length: 5.91; Oil Capacity: 46.77; Cylinder Bore Diameter (Decimal Inch): 3.74; Cylinder Effective Area: 1; Lowered Height: 13.12
Item #: 62730031
Brand: Enerpac
Model #: RACH306
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 40 |
| Stroke Length | 5.91 |
| Oil Capacity | 46.77 |
| Cylinder Bore Diameter (Decimal Inch) | 3.74 |
| Cylinder Effective Area | 1 |
| Lowered Height | 13.12 |
| Retracted Length | 13 |
| Extended Length | 19.02 |
| Cushion Type | No Cushion |
| Bore Diameter | 3.7400 |
| Outside Diameter | 5.12 in |
| Plunger Type | Hollow |
| Maximum Working Pressure | 10000.000 |
| Body Material | Aluminum |
| Saddle Diameter | 2.76 |
| Series | RACH |
| Y Center Hole Diameter | 1.34 |
| Maximum Height (Inch) | 19.0200 |
| Includes | CR400 Coupler; Dust Cap |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 40 |
| Stroke Length | 5.91 |
| Oil Capacity | 46.77 |
| Cylinder Bore Diameter (Decimal Inch) | 3.74 |
| Cylinder Effective Area | 1 |
| Lowered Height | 13.12 |
| Retracted Length | 13 |
| Extended Length | 19.02 |
| Cushion Type | No Cushion |
| Bore Diameter | 3.7400 |
| Outside Diameter | 5.12 in |
| Plunger Type | Hollow |
| Maximum Working Pressure | 10000.000 |
| Body Material | Aluminum |
| Saddle Diameter | 2.76 |
| Series | RACH |
| Y Center Hole Diameter | 1.34 |
| Maximum Height (Inch) | 19.0200 |
| Includes | CR400 Coupler; Dust Cap |
| UNSPSC Code | 27121602 |
| MSC Part # | 62730031 |
| Mfr Part # | RACH306 |
| Country of Origin Country of Origin is subject to change | India |
