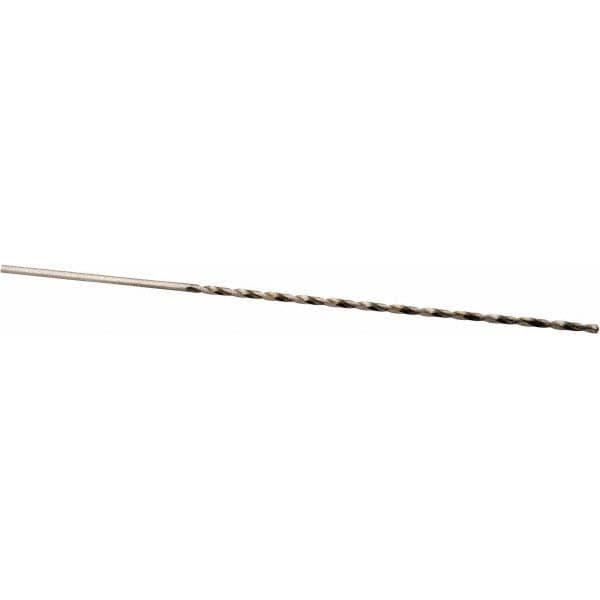

Taper Length Drill Bit: Series 235, 0.0709" Dia, 118 ° Point, High Speed Steel
Item #: 36785277
Brand: Guhring
Model #: 9002350018000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0709 |
| Tool Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Threaded Shank | No |
| Flute Length x Diamter Ratio | 15xD |
| Overall Length (mm) | 120 |
| Material Application3 | Brass; Cast Iron; Steel; Universal Steel |
| Series | 235 |
| Shank Diameter (Decimal Inch) | 0.0709 |
| Flute Length X Diameter Ratio | 15xD |
| Maximum Drilling Depth (Decimal Inch) | 3.0430 |
| Maximum Drilling Depth (mm) | 77.30 |
| Shank Length (mm) | 40.00 |
| Flute Length (mm) | 80.00 |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm |
| Tool Performance | General Purpose |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | DIN 1869 |
| Specification Number | DIN 1869 |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
