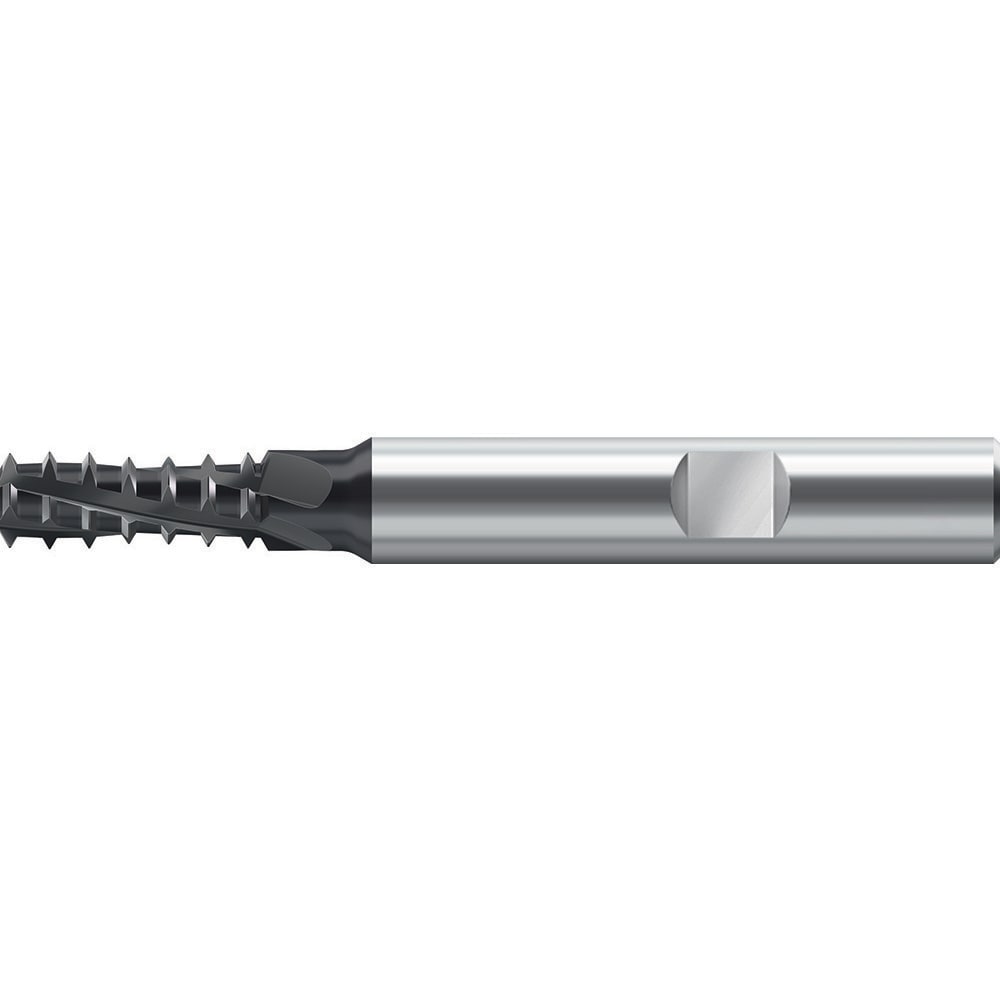

Helical Flute Thread Mill: M14x2, Internal, 4 Flute, 12.0000 mm Shank Dia, Solid Carbide
Item #: 55406748
Brand: Walter-Prototyp
Model #: 8117568
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M14x2 |
| Thread Type | Internal |
| Shank Diameter (mm) | 12.0000 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Cutting Diameter (mm) | 11.20 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.4409 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1024 |
| Length of Cut (mm) | 28.0000 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.000 |
| Overall Length (mm) | 90.0000 |
| Overall Length (Decimal Inch) | 3.5433 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC620-M-W5D |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (mm) | M14x2 |
| Thread Type | Internal |
| Shank Diameter (mm) | 12.0000 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Cutting Diameter (mm) | 11.20 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.4409 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1024 |
| Length of Cut (mm) | 28.0000 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.000 |
| Overall Length (mm) | 90.0000 |
| Overall Length (Decimal Inch) | 3.5433 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC620-M-W5D |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| MSC Part # | 55406748 |
| Mfr Part # | 8117568 |
| Country of Origin Country of Origin is subject to change | Germany |
