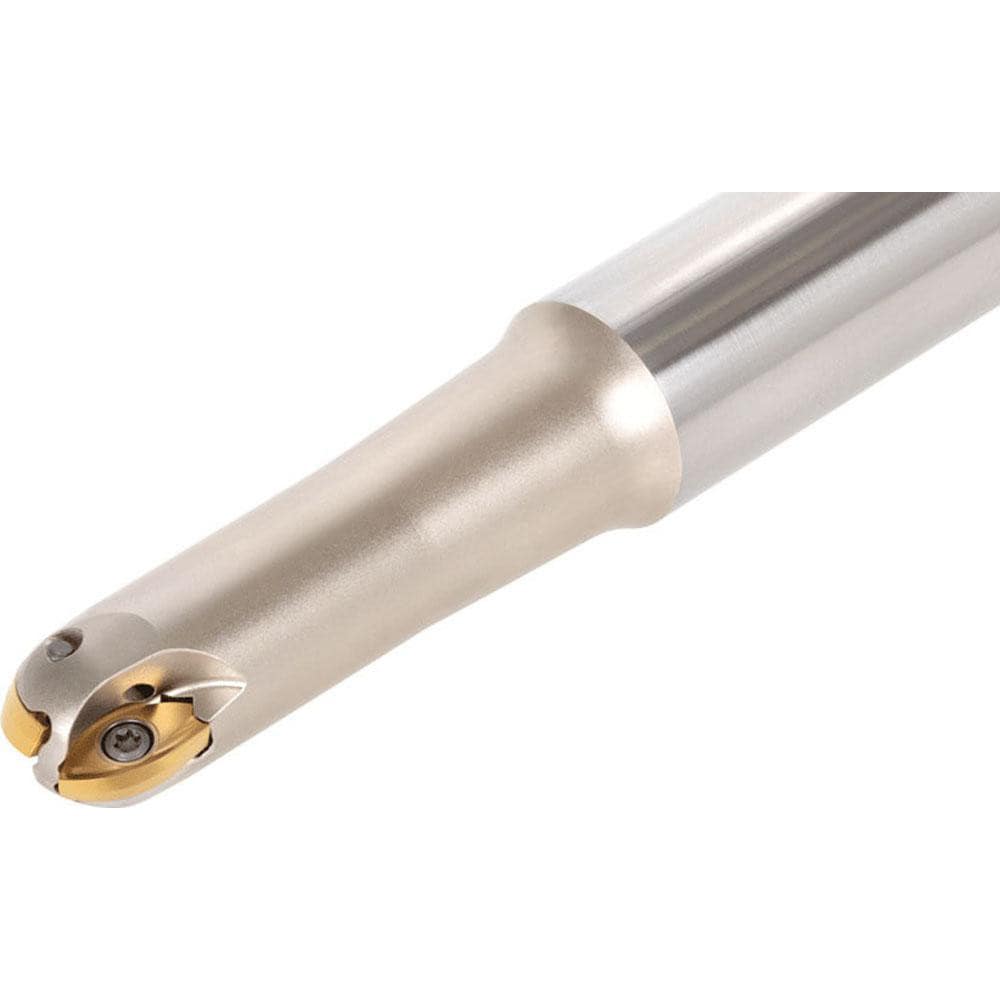

Indexable Ball Nose End Mills; Cutting Diameter (Decimal Inch): 0.6250; Tool Material: Steel; Maximum Depth of Cut (Decimal Inch): 0.4700; Shank Type: Cylindrical
Item #: 63662233
Brand: Tungaloy
Model #: 6166349
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Compatible Insert Style | ZRBU |
| Compatible Insert Size Code | 062 |
| Toolholder Style | EBRU |
| Tapered Neck | No |
| Overall Length (Decimal Inch) | 4.7480 |
| Series | EBRU |
| Head Length (Decimal Inch) | 1.3730 |
| Tool Application | Profile Milling |
| Manufacturers Catalog Number | EBRU062SW062S0475 |
| Cutting Diameter (Inch) | 5/8 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| Number Of Inserts | 2 |
| Complete Insert Compatibility | ZRBU |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Compatible Insert Style | ZRBU |
| Compatible Insert Size Code | 062 |
| Toolholder Style | EBRU |
| Tapered Neck | No |
| Overall Length (Decimal Inch) | 4.7480 |
| Series | EBRU |
| Head Length (Decimal Inch) | 1.3730 |
| Tool Application | Profile Milling |
| Manufacturers Catalog Number | EBRU062SW062S0475 |
| Cutting Diameter (Inch) | 5/8 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| Number Of Inserts | 2 |
| Complete Insert Compatibility | ZRBU |
| UNSPSC Code | 27112803 |
| MSC Part # | 63662233 |
| Mfr Part # | 6166349 |
| Country of Origin Country of Origin is subject to change | South Korea |
