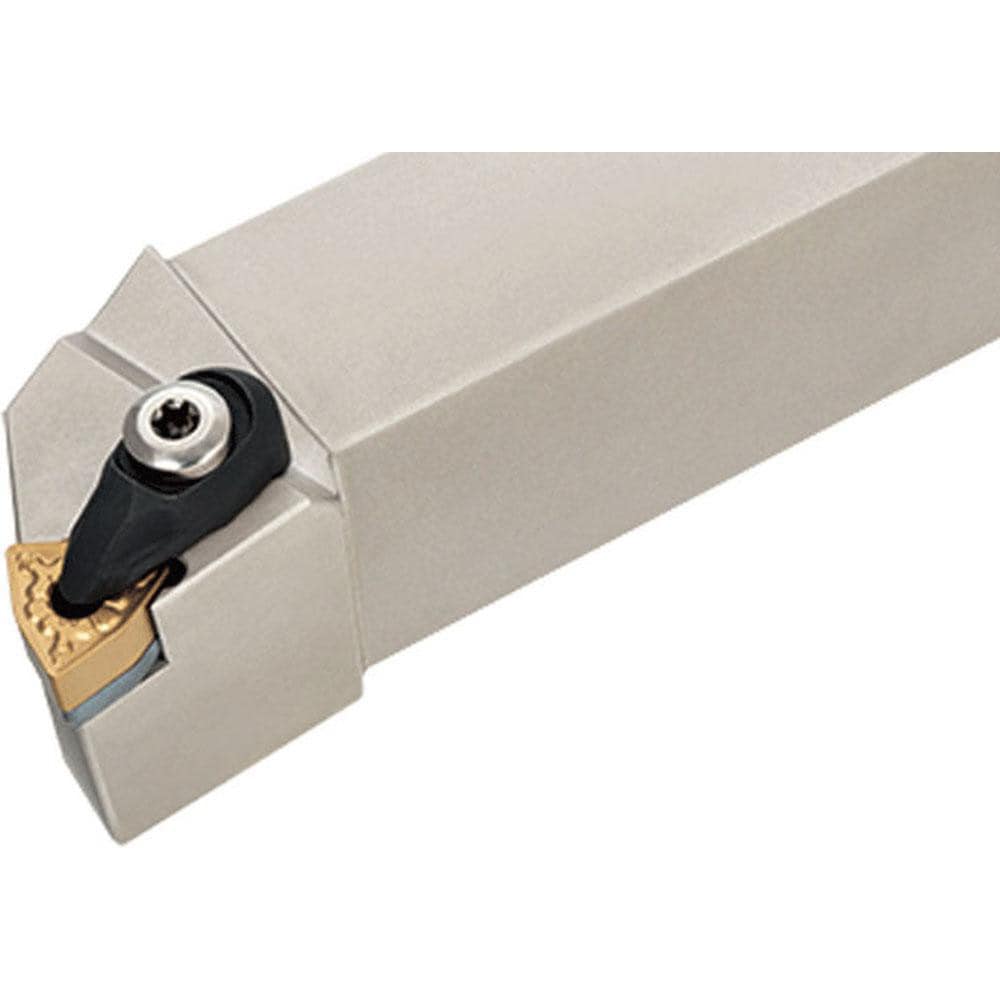

Indexable Turning Toolholder: AWLNL1633-A, 95.000 deg Lead Angle, Clamp
Item #: 65477770
Brand: Tungaloy
Model #: 6708745
Product Specifications
| Toolholder Style | AWLN |
| Hand of Holder | Left Hand |
| Lead Angle | 95.000 |
| Insert Compatibility | WN..33. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | WN..33. |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | AWLN |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Facing; Turning |
| Head Length (Decimal Inch) | 1.1250 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Toolholder Style | AWLN |
| Hand of Holder | Left Hand |
| Lead Angle | 95.000 |
| Insert Compatibility | WN..33. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | WN..33. |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | AWLN |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Facing; Turning |
| Head Length (Decimal Inch) | 1.1250 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1560 |
| MSC Part # | 65477770 |
| Mfr Part # | 6708745 |
| Country of Origin Country of Origin is subject to change | Japan |
