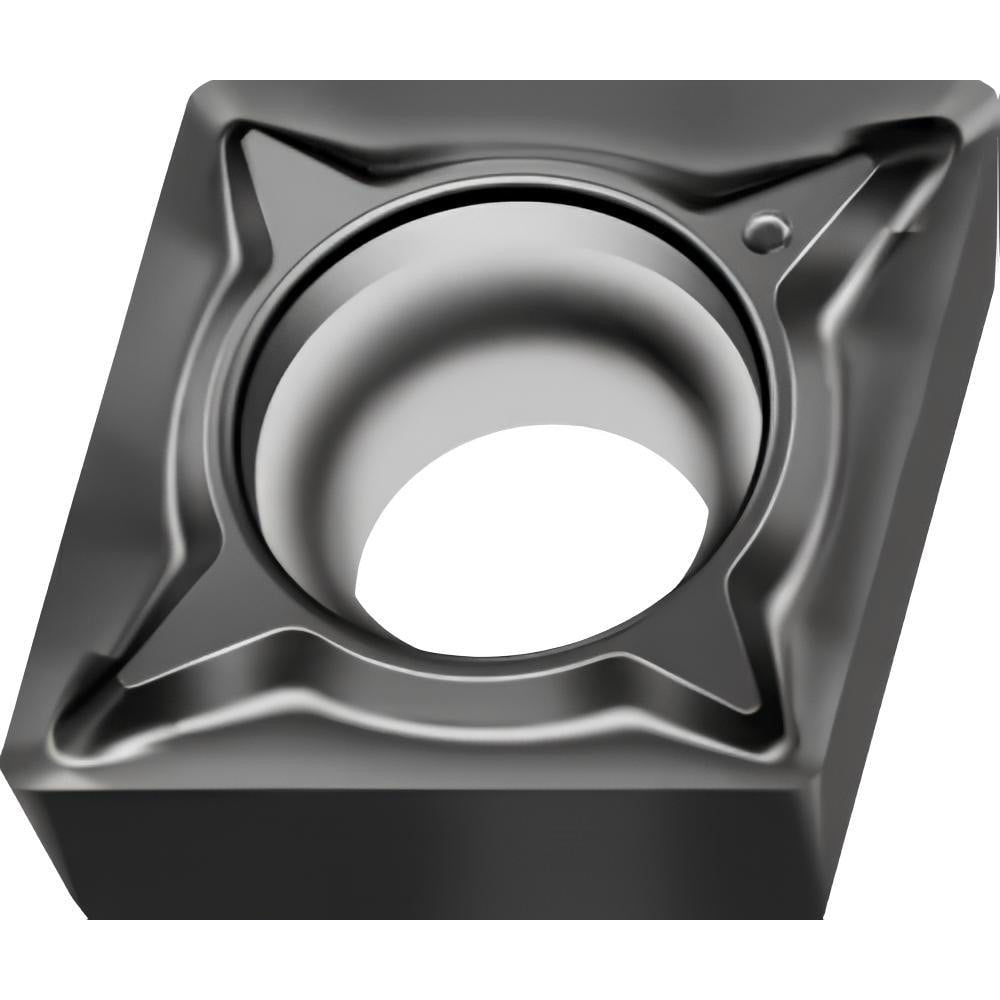

Turning Insert: CCGT09T302-FM2 WSM01, Carbide
Item #: 48013999
Brand: Walter
Model #: 7499353
Product Specifications
| ANSI Insert Code | CCGT32.50.5 |
| ISO Insert Code | CCGT09T302 |
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80 |
| Manufacturer Grade | WSM01 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CCGT-FM2 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Finishing |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3810 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Non-Ferrous Metal; Hard Material; Steel |
| Secondary Workpiece Material Code | P; H; N |
| Iso Code | CCGT09T302-FM2 WSM01 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 7499353 |
| Material Grade | S10; H20; N10; M10; P10 |
| Proprietary Coating Designation | WSM01 |
| Lead Angle | 80 |
| Coating Classification | PVD |
| Chip Breaker | FM2 |
| Rake Angle | 18 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCGT3(2.5)0.5-FM2 WSM01 |
| Width (Decimal Inch - 4 Decimals) | 0.3810 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 32.50.5 |
| ISO Size Code | 09T302 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.50.5 |
