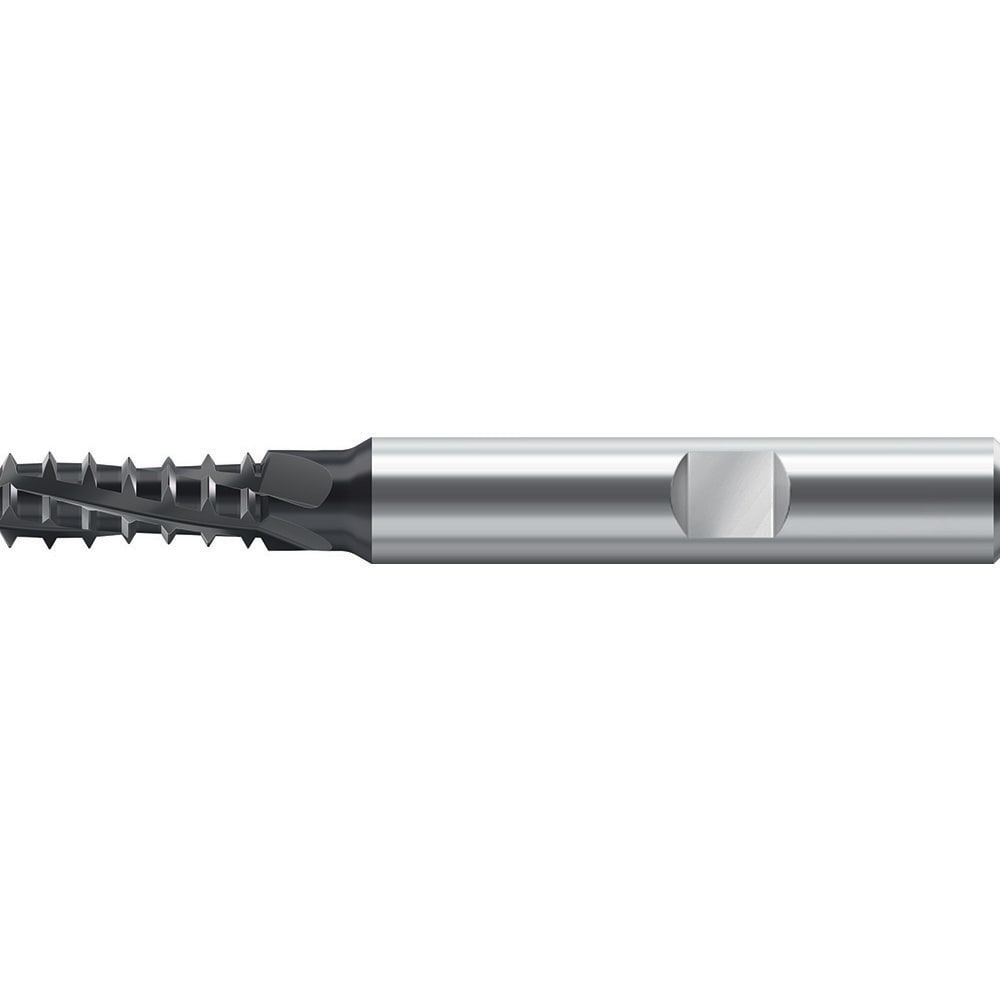

Helical Flute Thread Mill: M12x1.25, Internal, 5 Flute, 10.0000 mm Shank Dia, Solid Carbide
Item #: 56212475
Brand: Walter-Prototyp
Model #: 8117637
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M12x1.25 |
| Thread Type | Internal |
| Shank Diameter (mm) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Cutting Diameter (mm) | 10.00 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.9843 |
| Length of Cut (mm) | 25.0000 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.000 |
| Overall Length (mm) | 78.0000 |
| Overall Length (Decimal Inch) | 3.0709 |
| Thread Standard | Metric Fine |
| Flute Direction | Right Hand |
| Series | TC620-MF-W5D |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (mm) | M12x1.25 |
| Thread Type | Internal |
| Shank Diameter (mm) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Cutting Diameter (mm) | 10.00 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.9843 |
| Length of Cut (mm) | 25.0000 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.000 |
| Overall Length (mm) | 78.0000 |
| Overall Length (Decimal Inch) | 3.0709 |
| Thread Standard | Metric Fine |
| Flute Direction | Right Hand |
| Series | TC620-MF-W5D |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| MSC Part # | 56212475 |
| Mfr Part # | 8117637 |
| Country of Origin Country of Origin is subject to change | Germany |
