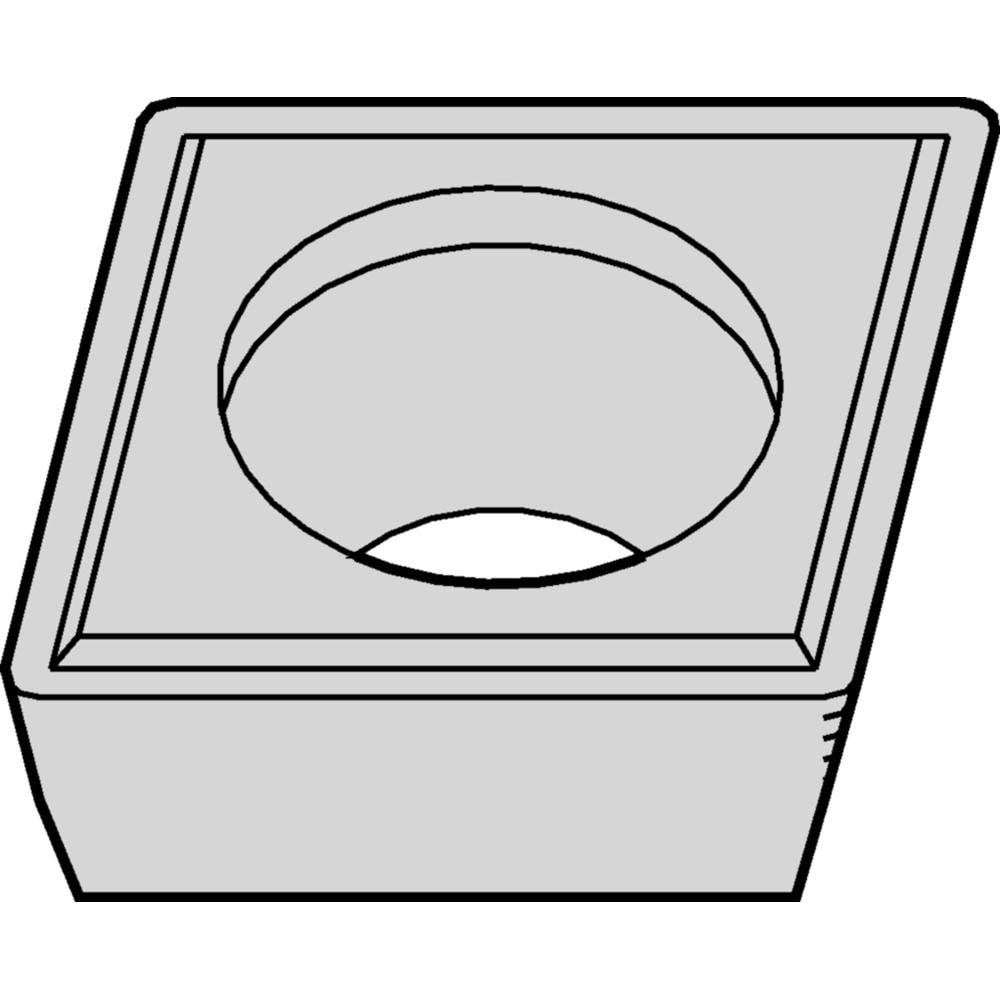

Turning Insert: CPHH21205, Carbide
Item #: 28555001
Brand: Widia
Model #: 2824461
Product Specifications
| ANSI Insert Code | CPHH21205 |
| ISO Insert Code | CPHH06T102 |
| Relief Angle | 11 |
| Insert Style | CPHH |
| Corner Radius (Decimal Inch) | 0.0070 |
| Included Angle | 80 |
| Manufacturer Grade | CG5 |
| Coating/Finish | TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0750 |
| Series | CPHH |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0847 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | P |
| Tolerance Code | H |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2540 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | CPHH06T102 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 2824461 |
| Material Grade | Submicron |
| Proprietary Coating Designation | TiN |
| Coating Classification | PVD |
| Cutting Edge Style | Honed |
| Industry Standard Number | CPHH21205 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Turning |
| ANSI Size Code | 21205 |
| ISO Size Code | 06T102 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21205 |
