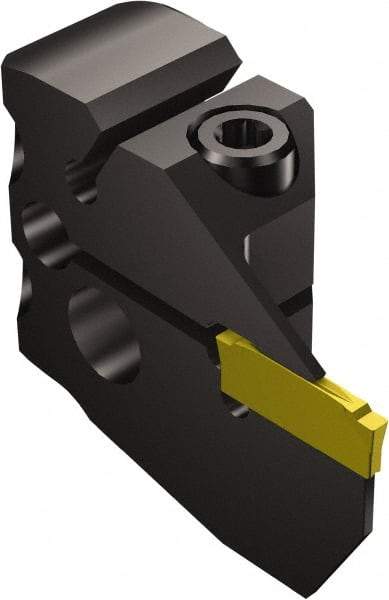

Sandvik Coromant - N123J2-0500-GM Insert, 18mm Head Length, 4.75mm Min Groove Width, Modular Grooving Blade Holder Head - Left Hand Cut, System Size 40, Through Coolant, Series CoroCut 1-2
Item #: 52084985
Brand: Sandvik Coromant
Model #: 5765149
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | CoroCut 1-2 |
| Cutting Direction | Left Hand |
| Modular Head Style | Blade Holder Head |
| Insert Style | N123J2-0500-GM |
| Head Length/Projection (mm) | 18.00 |
| Head Length/Projection (Decimal Inch) | 0.7087 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 45.10 |
| Center to Cutting Edge (Decimal Inch) | 1.7756 |
| Maximum Groove Width (mm) | 18.00 |
| Maximum Groove Width (Decimal Inch) | 0.7087 |
| Complete Insert Compatibility | N123J2-0500-GM |
| Minimum Groove Width (mm) | 4.75 |
| Minimum Groove Width (Decimal Inch) | 120.6500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 161.2900 |
