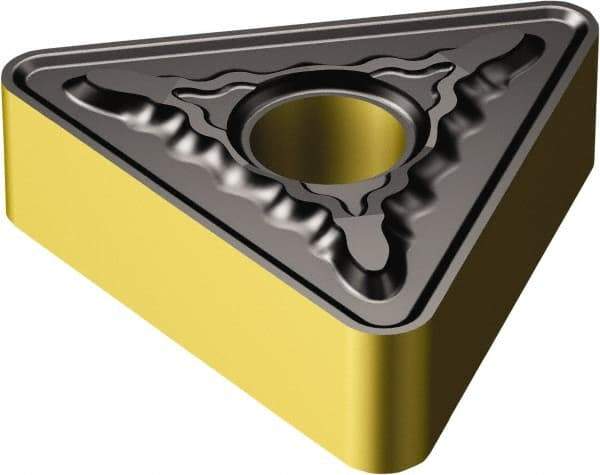

Sandvik Coromant - TNMG666 MR Grade 4325 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 60° Triangle, 3/4" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 52073830
Brand: Sandvik Coromant
Model #: 6532422
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 666 |
| Material | Carbide |
| Length (mm) | 30.60 |
| Length (Decimal Inch) | 1.2046 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.53 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (mm) | 2.3813 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | MR |
| Insert Length (Decimal Inch) | 1.2046 |
| OverallLength (mm) | 33.00 |
| Overall Length (Decimal Inch) | 1.2991 |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| ISO Number | TNMG 33 09 24-MR 4325 |
| Relief Angle | 0 |
| Included Angle | 60 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
