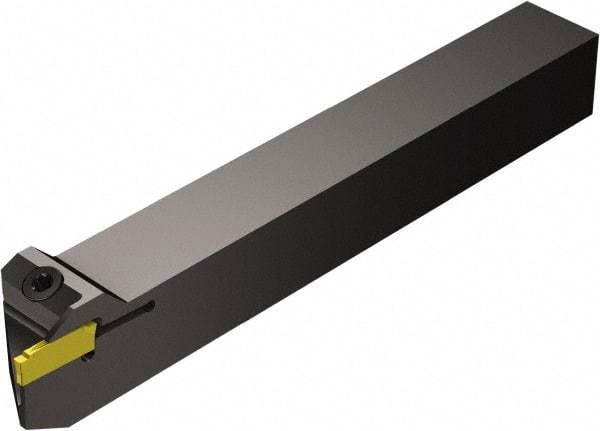

Sandvik Coromant - External Thread, 0.43" Max Depth of Cut, 1.5mm Min Groove Width, 5" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1/2" Shank Height x 1/2" Shank Width, N123D2-0150-CM Insert Style, LF123..B-S Toolholder Style, Series CoroCut 1-2
Item #: 52069309
Brand: Sandvik Coromant
Model #: 5732652
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 10.92 |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Minimum Groove Width (Decimal Inch) | 0.0591 |
| Minimum Groove Width (mm) | 1.50 |
| Maximum Groove Width (mm) | 1.50 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Series | CoroCut 1-2 |
| Toolholder Style | LF123..B-S |
| Insert Compatibility | N123D2-0150-CM |
| Shank Height (mm) | 12.70 |
| Shank Height (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (mm) | 12.70 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Height (mm) | 12.70 |
| Head Height (Decimal Inch) | 0.5000 |
| Head Length (mm) | 12.70 |
| Head Length (Decimal Inch) | 0.5000 |
| Shank Length (Decimal Inch) | 4.1133 |
| Shank Length (mm) | 104.48 |
| Manufacturers Catalog Number | LF123D043-08B-S |
