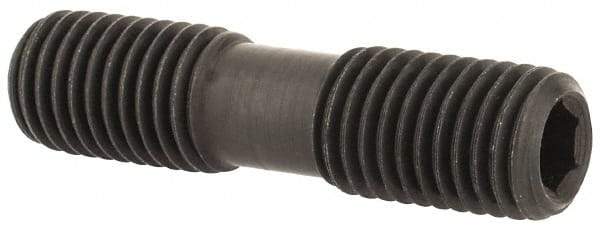

Iscar - Hex Socket Cap Screw for Indexable Turning - 5/16-24 Thread, For Use with Tool Holders
Item #: 51674356
Brand: Iscar
Model #: 7000974
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Screw Type | Cap Screw |
| Indexable Tool Type | Turning |
| Hardware Compatibility | Toolholder |
| Drive Type | Hex Socket |
| Thread Size (Inch) | 5/16-24 |
| Complete Insert Compatibility1 | VNGA 160404-M2; VNGA 160404T; VNGA 160408-M2; VNGA 160408-R2; VNMG 12T302-NF; VNMG 12T304-NF; VNMG 12T308-NF; VNMG 160404-NF; VNMG 160408-NF; VNMG 160408-TF; VNMG 160412-TF; VNMG 220408-TF; VNMS 160404-12; VNMS 160408-12 |
| Toolholder Style Compatibility1 | MVVNN |
| Head Type | Double Head |
| Series | Isoturn |
| Screw Length (Decimal Inch) | 1.2441 |
| Screw Length (mm) | 31.60 |
