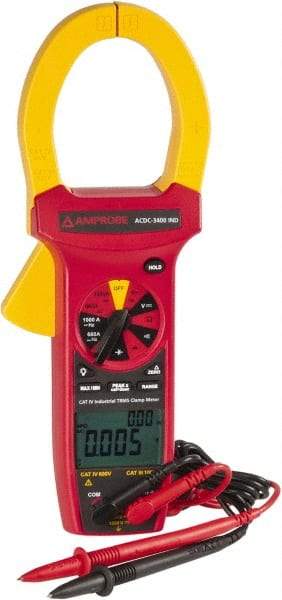

Amprobe - ACDC-3400 IND, CAT IV, CAT III, Digital True RMS Clamp Meter with 2.2441" Clamp On Jaws - 750 VAC, 1000 VDC, 1000 AC/DC Amps, Measures Voltage, Capacitance, Current, Frequency, Resistance
Item #: 51314060
Brand: Amprobe
Model #: ACDC-3400 IND
Exact Tooling IR#: 04
Features and Benefits
Clamp on meters are designed with jaws that open and close to fit around a conductor to measure AC or DC currents.
| Product Specifications | |
|---|---|
| Measures | Voltage; Capacitance; Current; Frequency; Resistance |
| Jaw Style | Clamp On |
| Jaw Capacity (Decimal Inch) | 2.2441 |
| CAT Rating | CAT IV; CAT III |
| Maximum DC Voltage | 1000 |
| Maximum AC Voltage | 750 |
| Maximum DC Current (A) | 1000 |
| Maximum AC Current (A) | 1000 |
| Maximum Resistance (Megohms) | 66 |
| Maxium Capacitance (mF) | 6.600 |
| Display Type | Digital |
| AC Wave Measurement | True RMS |
| Includes | Test Leads; Case; Manual |
| Frequency | 1MHz |
| Counts | 6600 |
| Battery Type | 9V |
| Standards Met | IEC61010; IEC61326 |
| PSC Code | 6625 |
