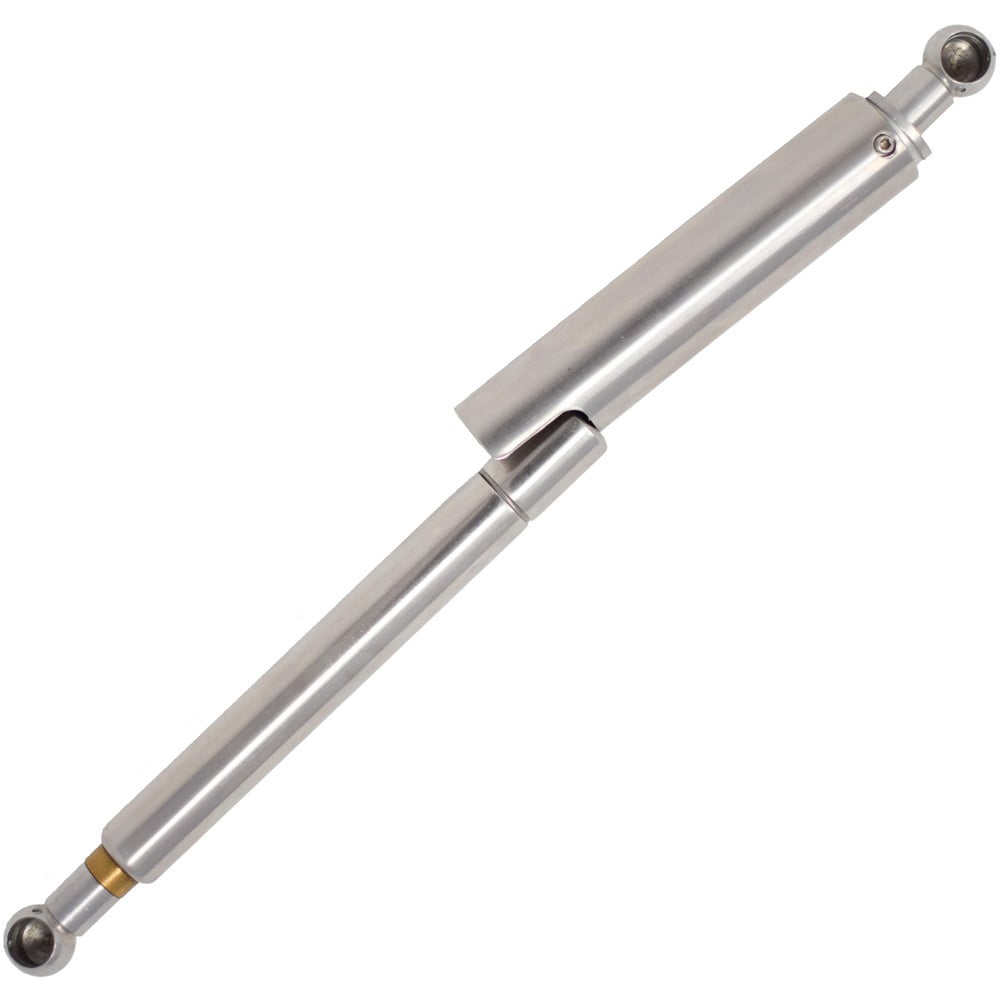

Locking Gas Spring: 30.00 lb Capacity
Item #: 02441590
Brand: Associated Spring Raymond
Model #: MCGSSL310030
Product Specifications
| Fitting Type | Socket End |
| Type | Locking Gas Spring |
| Material | Stainless Steel |
| Rod Diameter (mm) | 10.00 |
| Tube Diameter (mm) | 22.00 |
| End Fitting Connection | Socket End |
| Extended Length (Decimal Inch) | 27.9900 |
| Compressed Length (Decimal Inch) | 16.49 |
| Extension Force | 30 |
| Stroke Length (mm) | 292.00 |
| Force Mechanism | Gas |
| Locking | Yes |
| Working Direction | Extension |
| Capacity (Lb.) | 30.00 |
| Finish Coating | Uncoated |
| UNSPSC Code | 31162800 |
