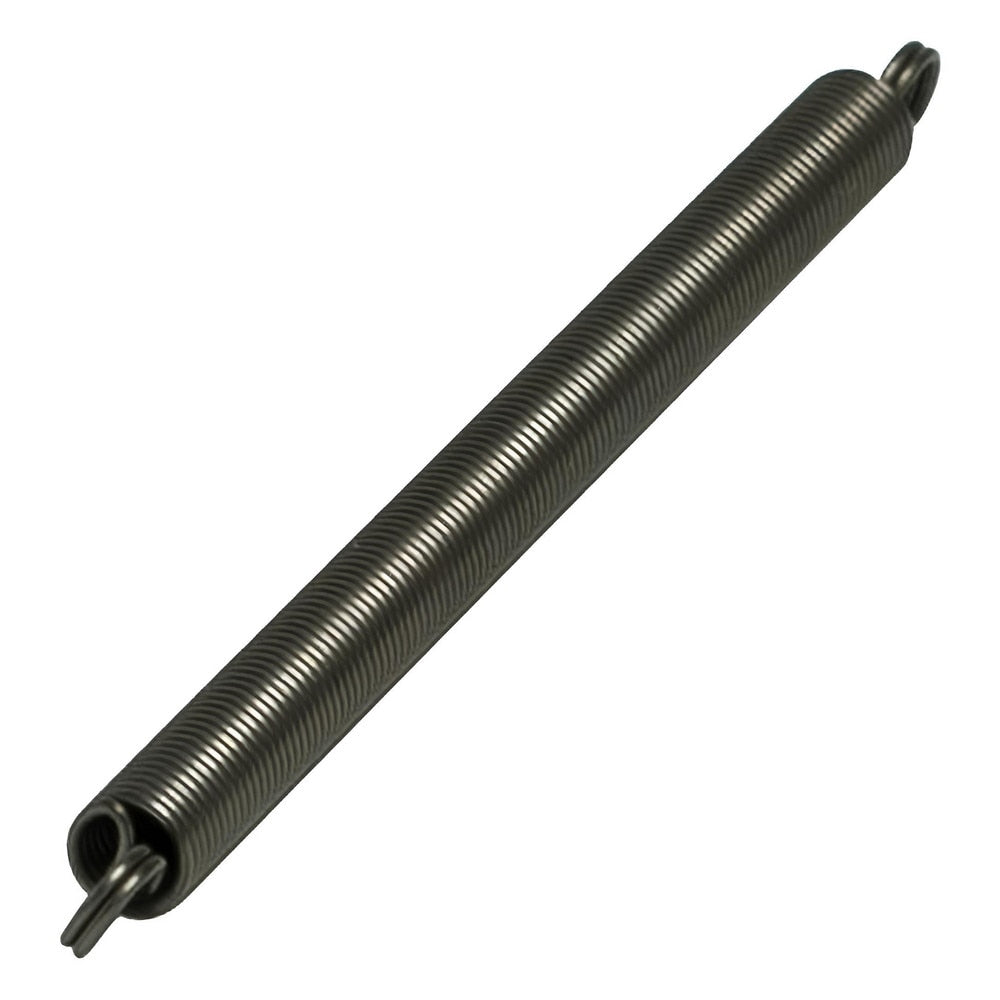

Extension Springs; End Type: Double Loop; Outside Diameter (Decimal Inch
Item #: 03214210
Brand: Associated Spring Raymond
Model #: MCDE0375010300M
Product Specifications
| End Type | Double Loop |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.3750 |
| Spring Rate | 4.3000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 3.0940 |
| Initial Tension (Lb.) | 2.21 |
| Maximum Extended Length (Decimal Inch) | 4.7000 |
| Free Length (Inch) | 3 |
| Inside Hook Length (Fractional Inch) | 3 |
| Standards | AMS 5112; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (Decimal Inch) | 0.0470 |
| UNSPSC Code | 31161907 |
