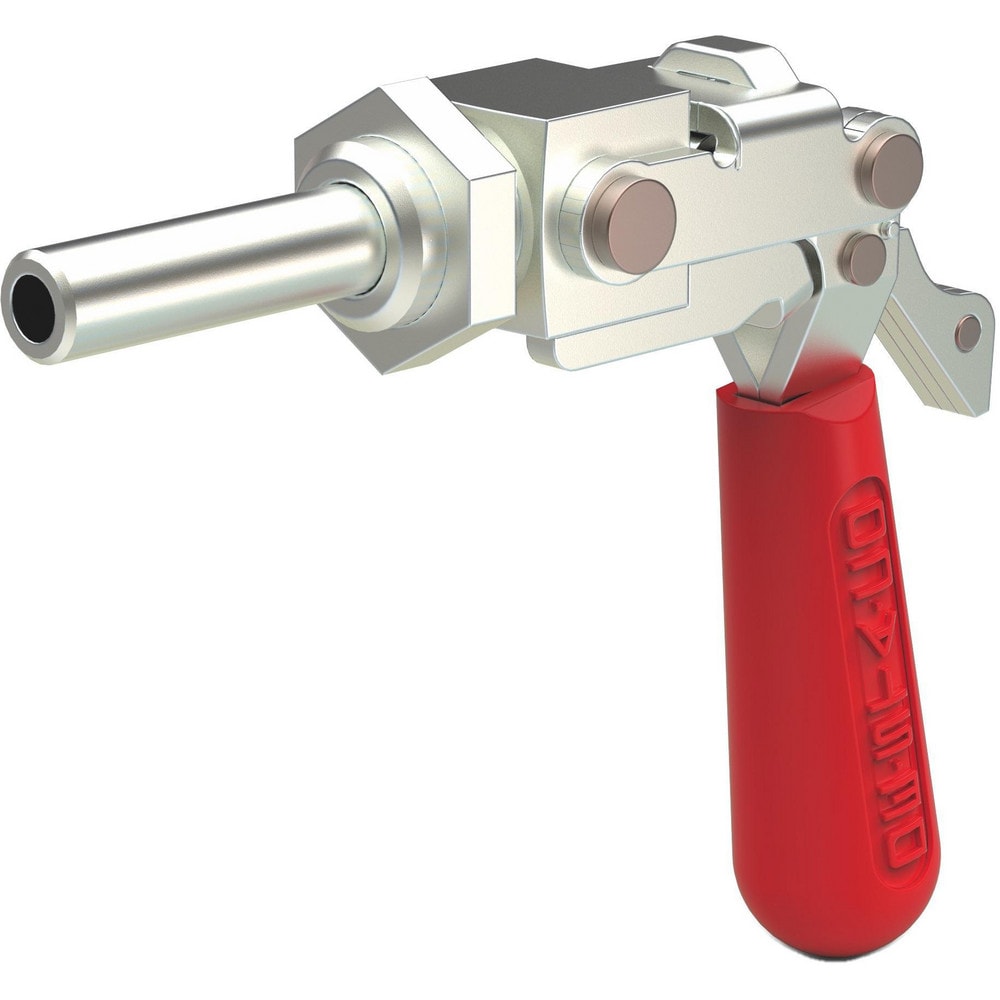

Standard Straight-Line Action Clamps; Load Capacity (N): 1330.00; Load Capacity: 1330; Plunger Travel (Decimal Inch): 1.5000; Plunger Travel: 1.5 in; Plunger Shape: Round
Item #: 10147270
Brand: De-Sta-Co
Model #: 604-R
Product Specifications
| Load Capacity (N) | 1330.00 |
| Load Capacity | 1330 |
| Plunger Travel (Decimal Inch) | 1.5000 |
| Plunger Travel | 1.5 in |
| Plunger Shape | Round |
| Plunger Thread Size | 5/16-18 |
| Plunger Centerline Height | 0.44 in |
| Plunger Diameter (Decimal Inch) | 0.44 |
| Handle Style | Straight |
| Clamp Material | Carbon Steel |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 4.9500 |
| Overall Height (Decimal Inch) | 4.1600 |
| Handle Color | Red |
| Maximum Mechanical Advantage | 45:1/26:1 |
| Includes | Mounting Nut |
| UNSPSC Code | 27112100 |
| Clamp Type | Straight Line Action |
| Holding Capacity (N) | 1330.00 |
| Handle Movement (Degrees) | 360 |
| Handle Orientation | Multi-Position Rotatable |
| Holding Capacity (Lb.) | 300 |
