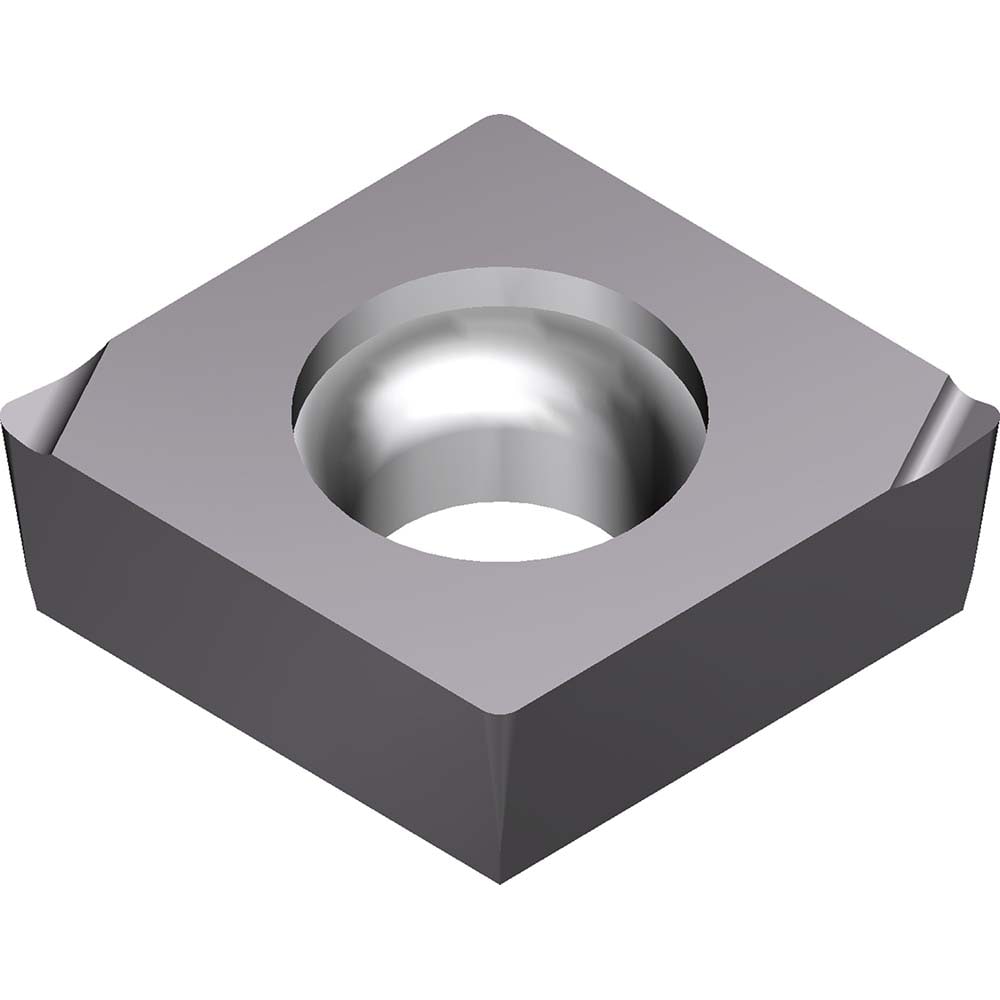

Boring Inserts; Insert Style: CCET; Insert Size Code: 04X1003; Insert Material: Carbide; Material Grade: M10, P10; Manufacturer Grade: AC1030U
Item #: 20235768
Brand: Sumitomo
Model #: 1LR4652
Product Specifications
| Insert Style | CCET |
| Insert Size Code | 04X1003 |
| Insert Material | Carbide |
| Material Grade | M10; P10 |
| Manufacturer Grade | AC1030U |
| Inscribed Circle (Decimal Inch) | 0.1693 |
| Hole Diameter (Decimal Inch) | 2.3000 |
| Insert Holding Method | Screw-On |
| Corner Radius (Decimal Inch) | 0.0012 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | LFYS |
| Series | AC1030U |
| Coating Process | PVD |
| Included Angle | 80 |
| Iso Code | CCET04X1003L-FYS |
| Manufacturers Catalog Number | CCET04X1003LFYS-AC1030U |
| Length (Decimal Inch - 4 Decimals) | 0.1957 |
| Coating/Finish | Absotech |
| UNSPSC Code | 23242105 |
