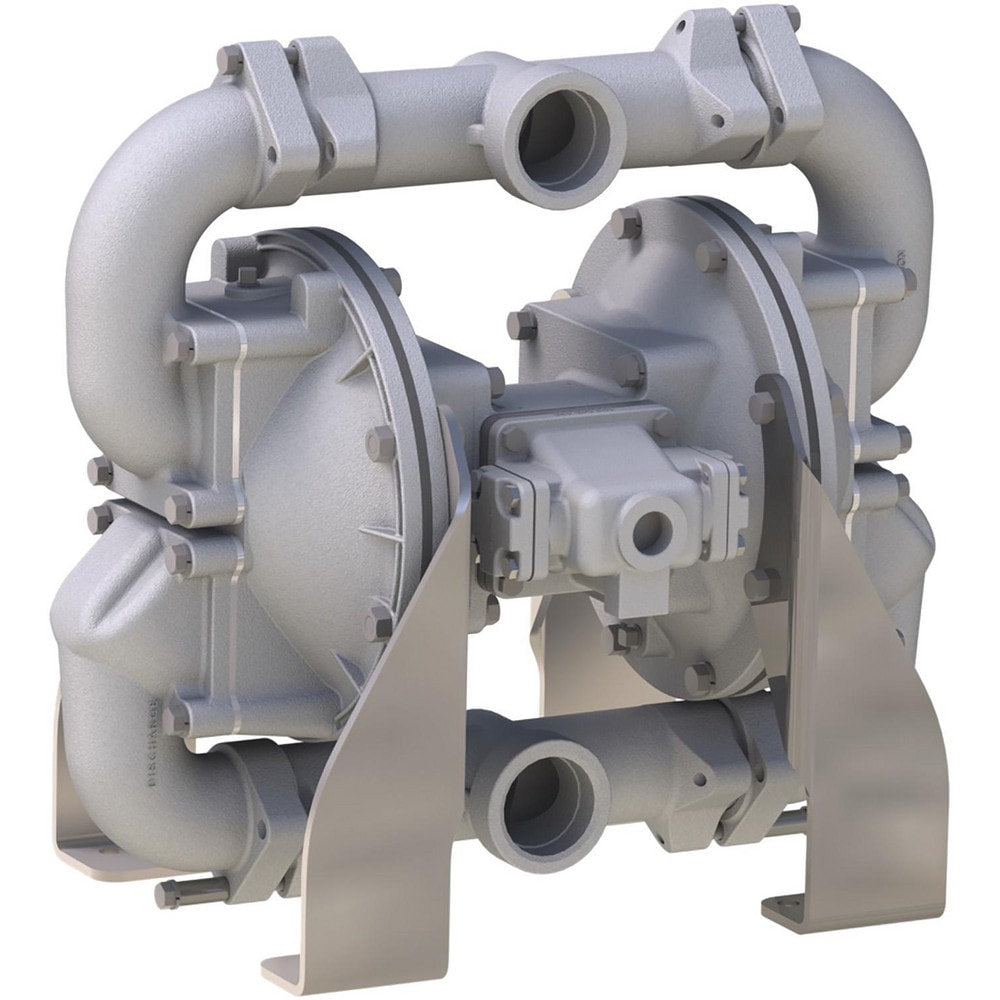

Air-Operated Diaphragm Pumps; Maximum Flow Rate (Gpm
Item #: 05997960
Brand: SandPIPER
Model #: HDF2,DP6I.
Product Specifications
| Maximum Flow Rate (Gpm - 2 Decimals) | 208.00 |
| Maximum Working Pressure | 125.000 |
| Thread Type | NPT |
| Inlet Size | 2 in |
| Cubic Feet Per Minute | 140 SCFM |
| Diaphragm Material | Santoprene |
| Ball Material | Santoprene |
| Check Seat Material | Stainless Steel |
| Height (Inch) | 19.87 |
| Width (Inch) | 21.64 |
| Length (Inch) | 13.56 |
| Port Type | NPT |
| Body Material | Cast Iron |
| Maximum Temperature (F) ( - 0 Decimals) | 275.000 |
| Maximum Solid Size (Inch) | 2 |
| Air Inlet Size (Inch) | 3/4 |
| Maximum Cubic Feet Per Minute (CFM) | 140.00 |
| UNSPSC Code | 40151548 |
