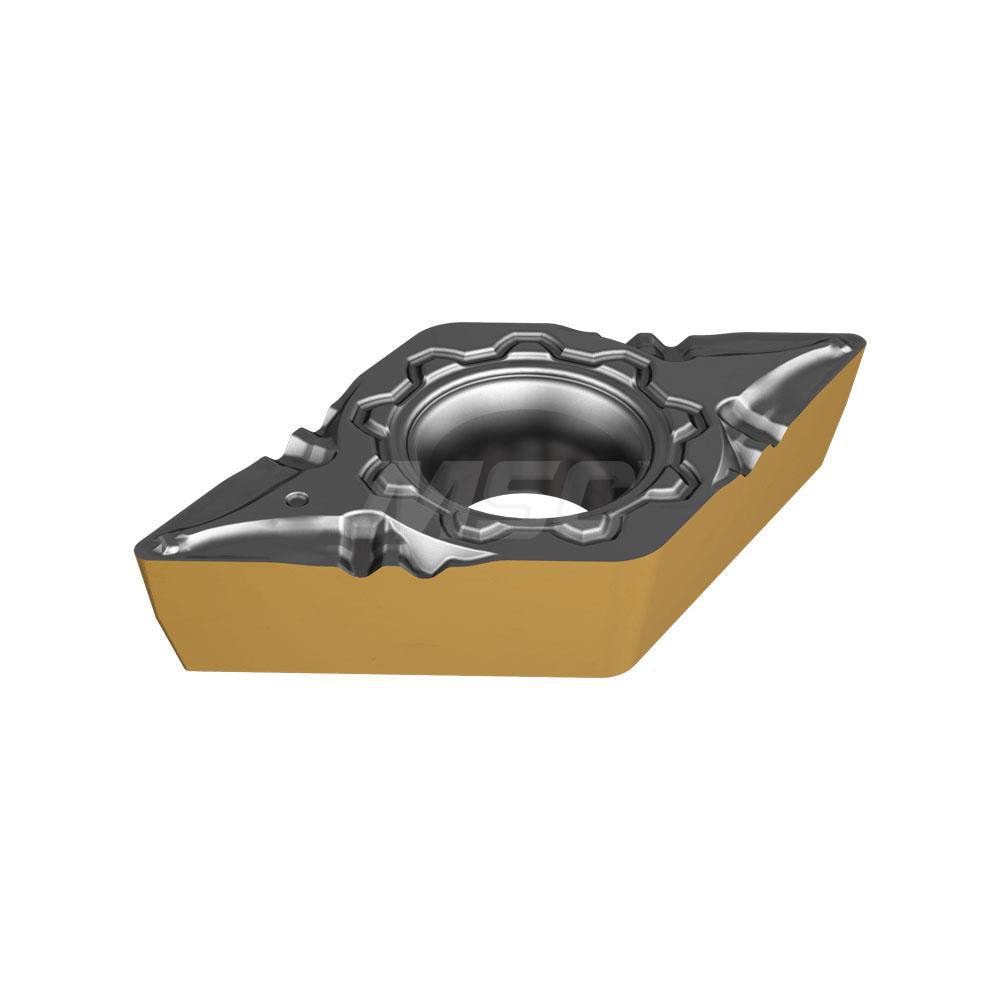

Turning Insert: DCMT 3-1-F3P IC8250, Carbide
Item #: 37440609
Brand: Iscar
Model #: 5566872
Product Specifications
| ANSI Insert Code | DCMT3-1 |
| ISO Insert Code | DCMT11T304 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | IC8250 |
| Coating/Finish | TiCN; TiN; AI2O3 |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | F3P |
| ANSI Size Code | 3-1 |
| ISO Size Code | 11T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3-1 |
