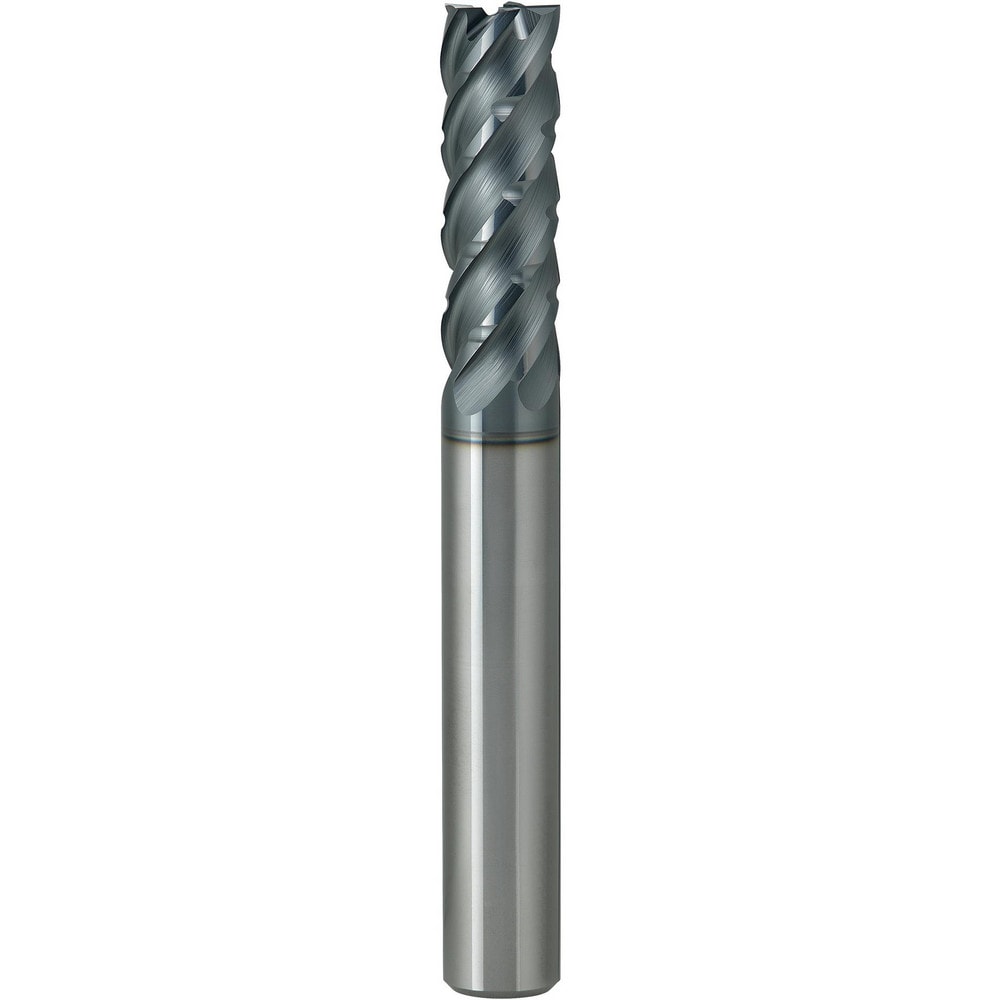

Square End Mill: 10.00 mm Dia, 30.00 mm LOC, 5 Flute, Solid Carbide
Item #: 09244310
Brand: Mitsubishi
Model #: 22908605
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.1811 |
| Length of Cut (mm) | 30.00 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Single Or Double End | Single |
| Coating/Finish Family | AlCrN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 40 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Aluminum & Non-Ferrous |
| Secondary Workpiece Material Code | N |
| Coating/Finish | AlCrN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | Yes |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Medium |
| Neck Length (Decimal Inch) | 1.1811 |
| Neck Length (mm) | 30.00 |
| Mill Diameter Tolerance | 0; -0.030 |
| Shank Diameter Tolerance | h6 |
| Series | VQ Endmill VQJCS |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
