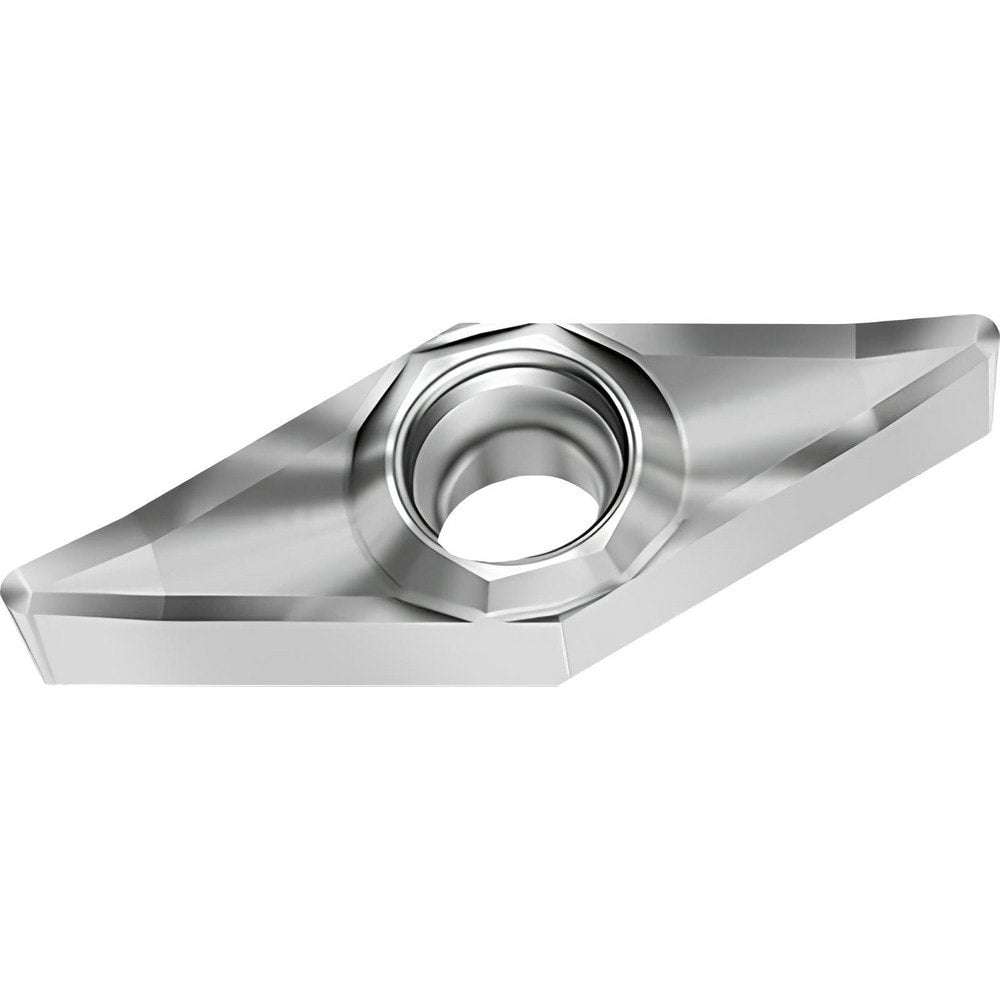

Turning Insert: VCGT331-MN2 WN10, Carbide
Item #: 16357386
Brand: Walter
Model #: 8133015
Product Specifications
| ANSI Insert Code | VCGT331 |
| ISO Insert Code | VCGT160404 |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35 |
| Manufacturer Grade | WN10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | VCGT-MN2 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1382 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6540 |
| Insert Length (mm) | 16.61 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | VCGT160404-MN2 WN10 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 8133015 |
| Material Grade | S10; N10 |
| Proprietary Coating Designation | Uncoated |
| Lead Angle | 35 |
| Coating Classification | Uncoated |
| Chip Breaker | MN2 |
| Rake Angle | 25 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | VCGT331-MN2 WN10 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
