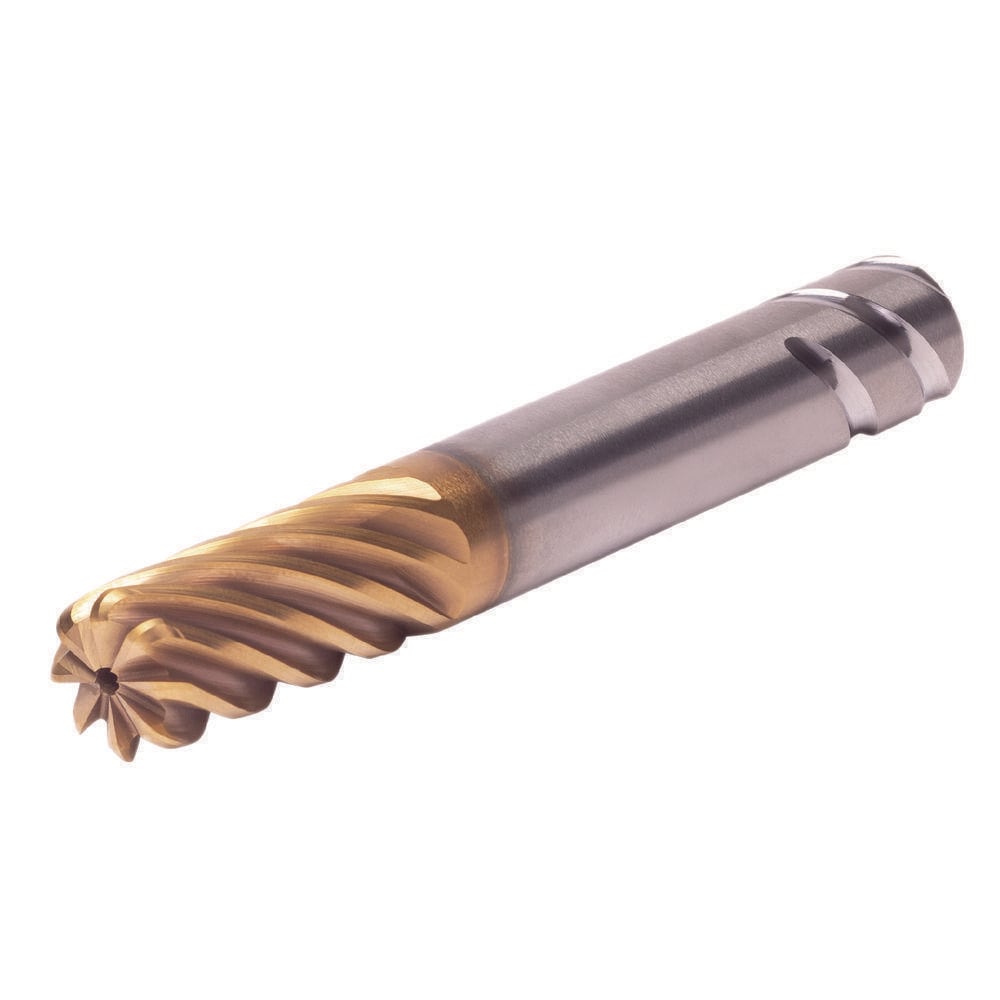

Corner Radius End Mill: 1/2" Dia, 1" LOC, 3.05 mm Radius, 8 Flute, Solid Carbide
Item #: 09295189
Brand: Kennametal
Model #: 7102514
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5 |
| Number Of Flutes | 8 |
| Length of Cut (Inch) | 1 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrN |
| Overall Length (Inch) | 3 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.1200 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 3.05 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 3 |
| Chipbreaker | Yes |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| UNSPSC Code | 27112803 |
| Series | HARVI IV |
