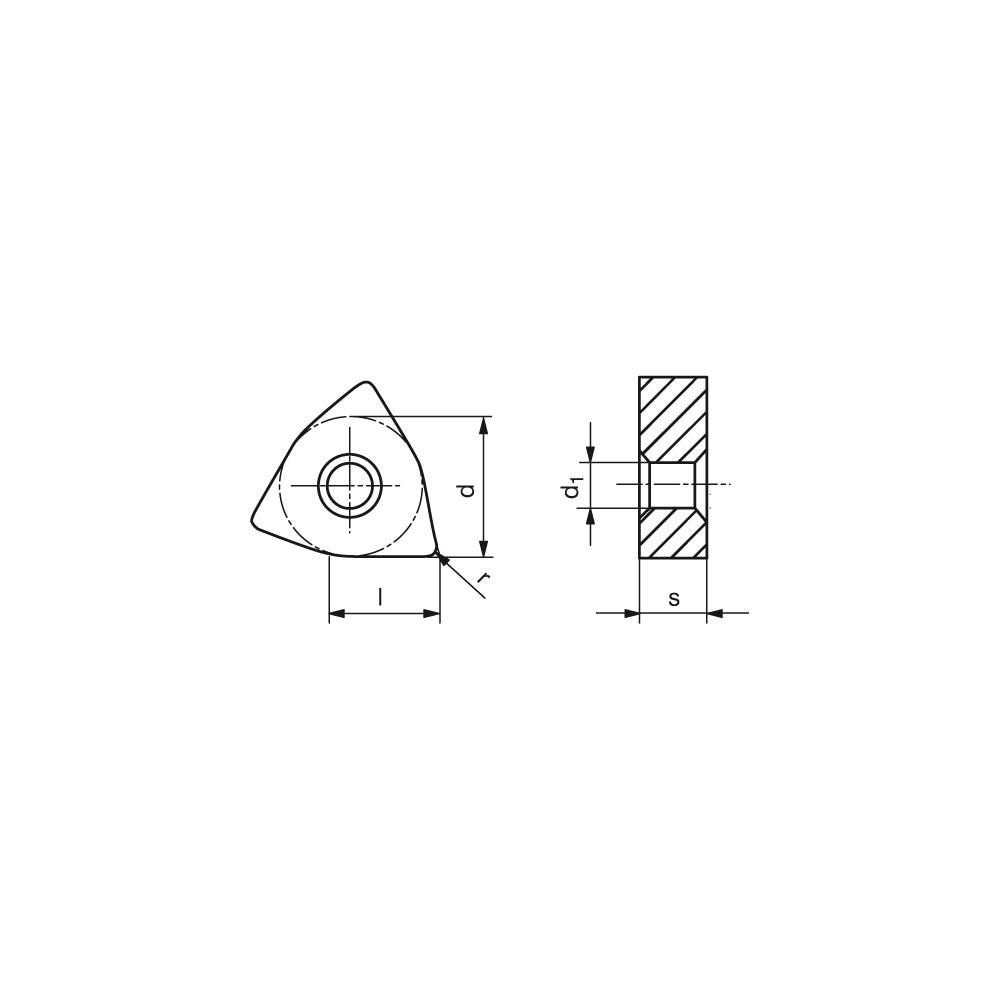

Turning Insert: WNMG333EN-M60 CTCM130, Carbide
Item #: 26296459
Brand: Ceratizit
Model #: 7502630800
Product Specifications
| ANSI Insert Code | WNMG333 |
| ISO Insert Code | WNMG060412 |
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80 |
| Manufacturer Grade | CTCM130 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | WNMG |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | WNMG 060412EN-M60 CTCM130 |
| Chip Breaker | M60 |
| ANSI Size Code | 333 |
| ISO Size Code | 060412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 333 |
