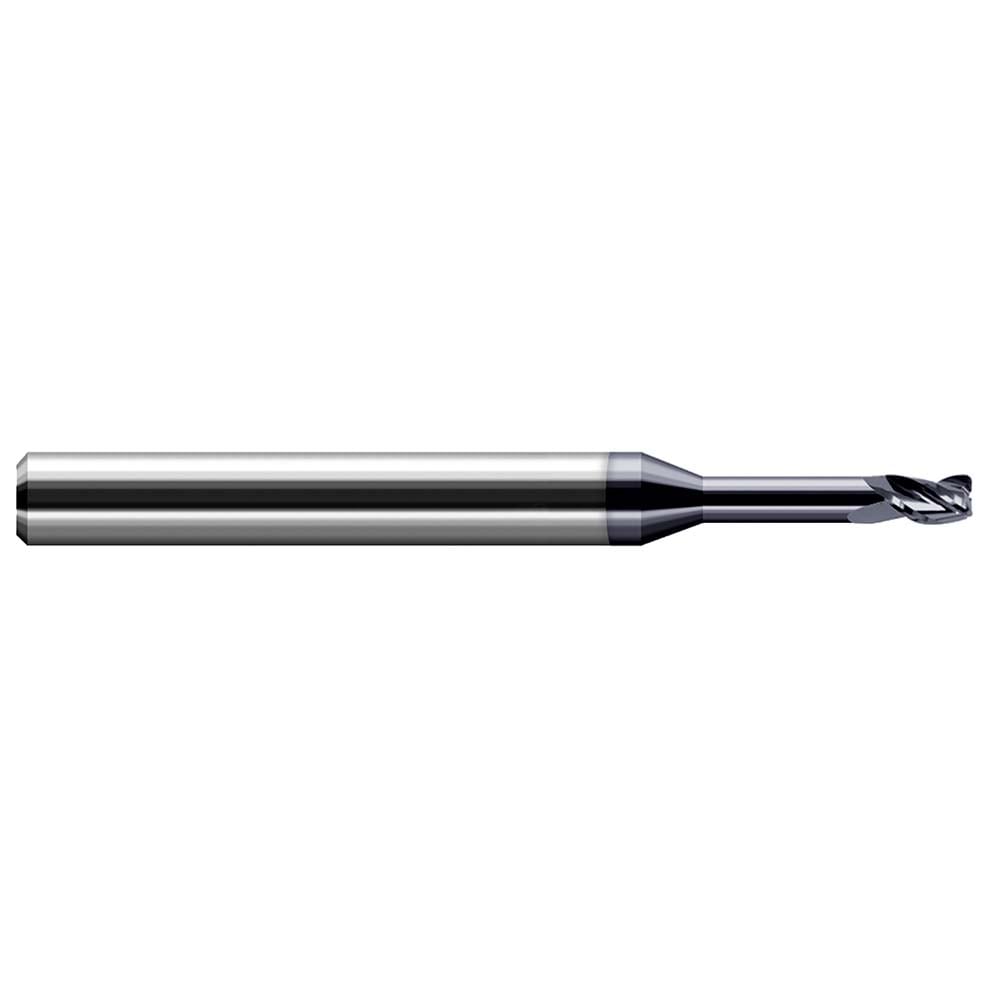

Corner Radius End Mill: 1/32" Dia, 0.046" LOC, 0.0100" Radius, 4 Flute, Solid Carbide
Item #: 06006688
Brand: Harvey Tool
Model #: 730231-C3
Product Specifications
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.031 |
| Mill Diameter (mm) | 0.8 |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0460 |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Reach Length (Decimal Inch) | 0.1560 |
| Reach Length (Inch) | 5/32 |
| UNSPSC Code | 27112803 |
| Series | Stub Flute; Miniature End Mills - Corner Radius - Long Reach |
