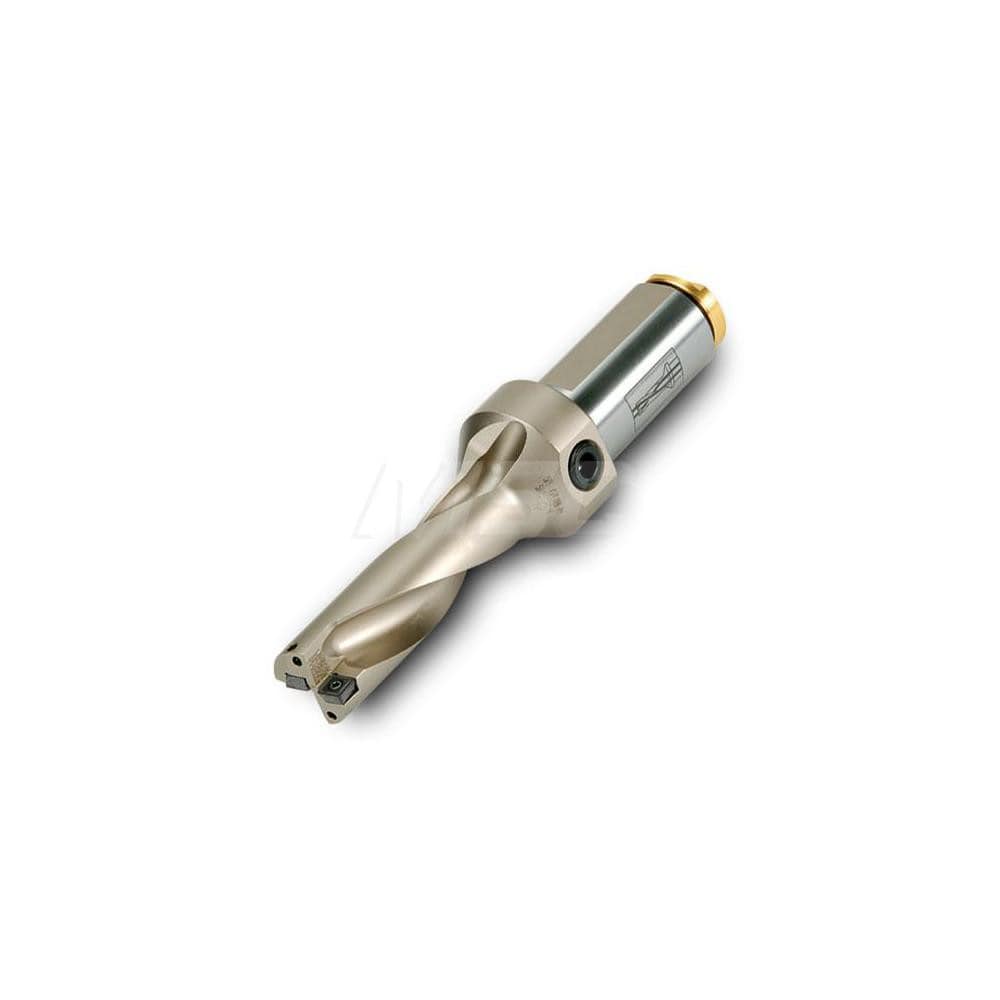

Indexable Insert Drill: Q0254076N6R01, 3" Max Dia, 3" Max Depth, 3xD, 1-1/4" Shank Dia
Item #: 09950627
Brand: Ingersoll Cutting Tools
Model #: 6348167
Product Specifications
| Compatible Drill Style | Q |
| Maximum Drill Diameter (Inch) | 3 |
| Maximum Drill Diameter (Decimal Inch) | 1.0200 |
| Maximum Drill Depth (Inch) | 3 |
| Maximum Drill Depth (Decimal Inch) | 3.0000 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SPLT |
| Compatible Insert Size Code | 07T308 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 6.8900 |
| Series | Quad Drill |
| Flute Length (Decimal Inch) | 3.0000 |
| Body Length (Decimal Inch) | 4.5300 |
| Shank Length (Decimal Inch) | 2.3600 |
| Neck Diameter (Inch) | 1.7700 |
| Modular Connection Size | 1-1/4 in |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3125 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SPLT 07T308N-PH |
| Collar Diameter (Decimal Inch) | 1.7700 |
| Insert Lock Screw | SM25-064-00 |
| Coolant Through | Yes |
