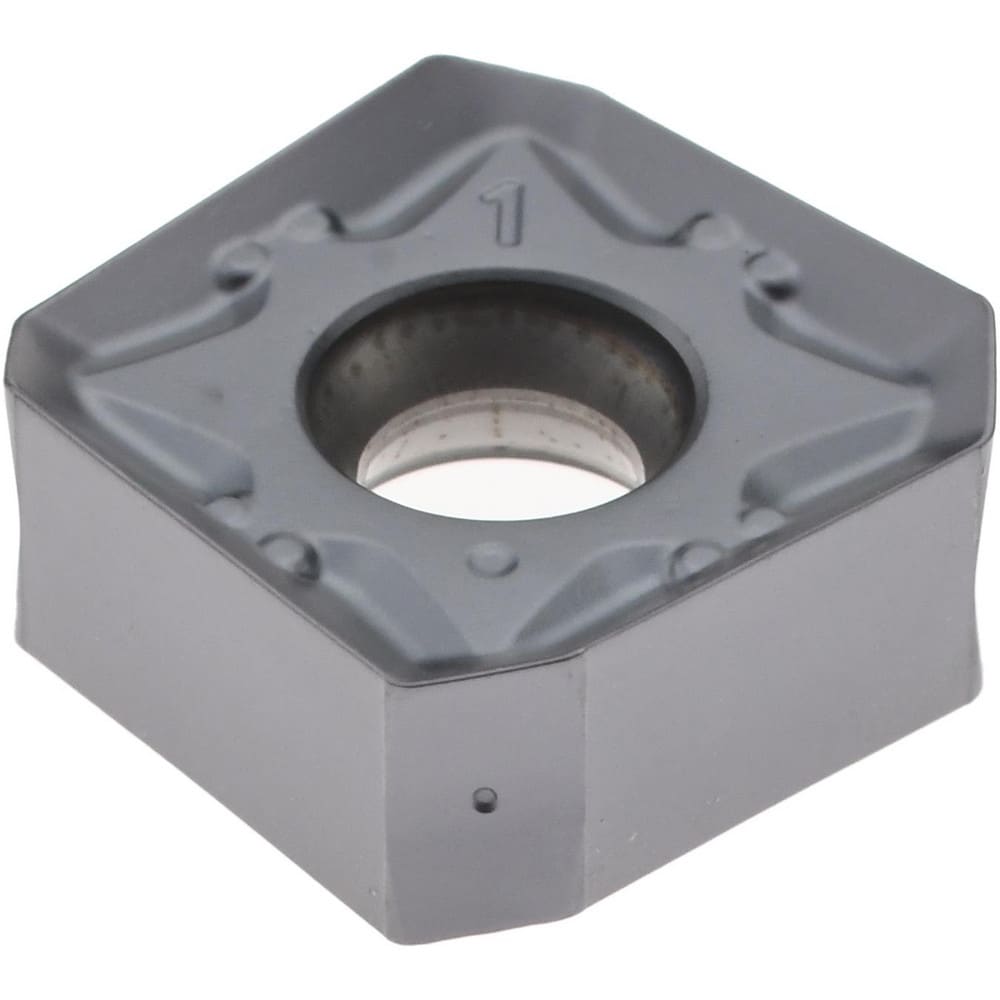

Milling Insert: SOKU1205AZERSCM ACP35M, Solid Carbide
Item #: 54054408
Brand: Accupro
Model #: 54054408
Product Specifications
| Insert Style | SOKU |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | ACP35M |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2008 |
| Thickness (mm) | 5.1000 |
| Coating/Finish | PVD |
| Relief Angle | 6.000 |
| Insert Size Code | 12 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Series | CI |
| Rake | Positive |
| Iso Code | SOKU1205AZERSCM |
| Cutter Series Compatibility | SOKU |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Length (mm) | 13.00 |
| Width (Decimal Inch - 4 Decimals) | 0.1102 |
| Width (mm - 2 Decimals) | 2.80 |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
| Insert Style | SOKU |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | ACP35M |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2008 |
| Thickness (mm) | 5.1000 |
| Coating/Finish | PVD |
| Relief Angle | 6.000 |
| Insert Size Code | 12 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Series | CI |
| Rake | Positive |
| Iso Code | SOKU1205AZERSCM |
| Cutter Series Compatibility | SOKU |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Length (mm) | 13.00 |
| Width (Decimal Inch - 4 Decimals) | 0.1102 |
| Width (mm - 2 Decimals) | 2.80 |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
| MSC Part # | 54054408 |
| Mfr Part # | 54054408 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
