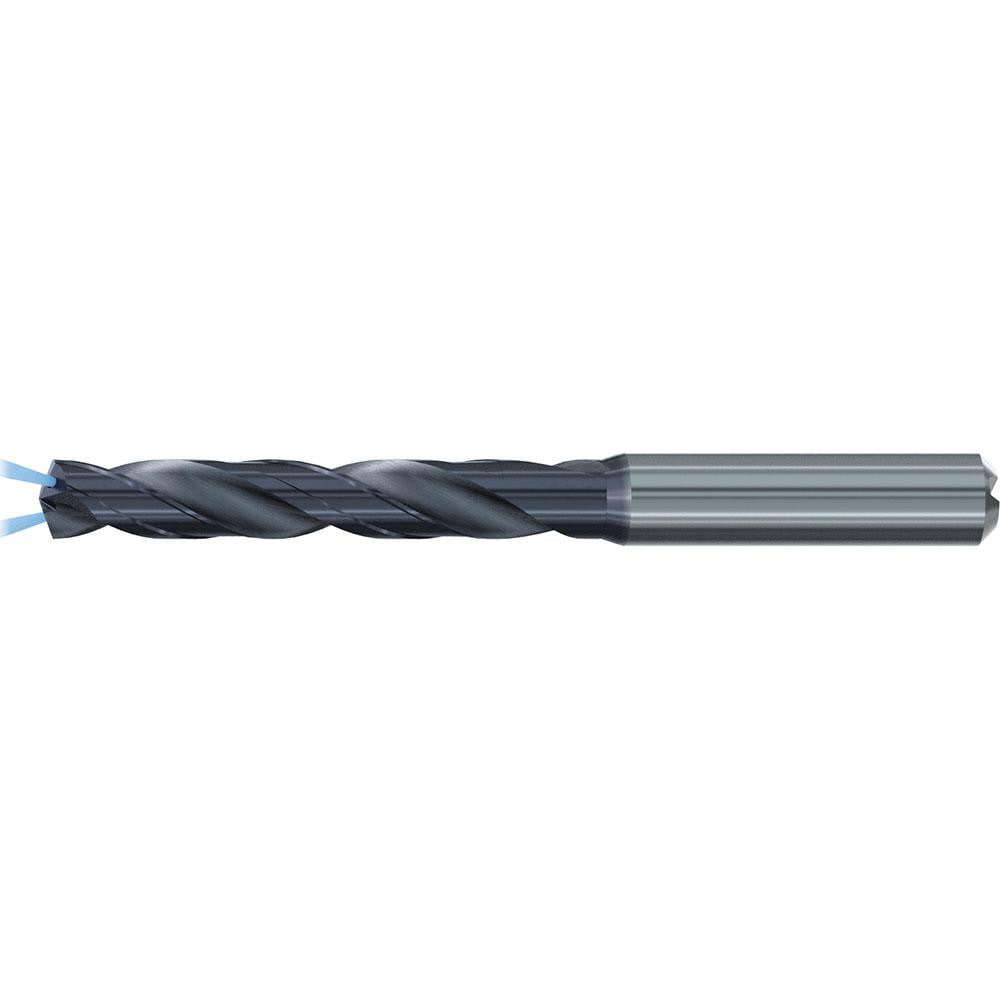

Jobber Drill: 9.50 mm Dia, 140 deg Point, Solid Carbide
Item #: 91836387
Brand: Emuge
Model #: TA219744.0950
Product Specifications
| Drill Bit Size (mm) | 9.50 |
| Drill Bit Size (Decimal Inch) | 0.3740 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Self Centering |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Overall Length (mm) | 103.00 |
| Overall Length (Decimal Inch) | 4.0551 |
| Spiral Type | Regular |
| Flute Length (mm) | 61.00 |
| Flute Length (Decimal Inch) | 2.4016 |
| Proprietary Coating/Finish | TiAlN-T63 |
| Series | TA219744 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10 |
| Maximum Drilling Depth (mm) | 49.00 |
| Shank Length (mm) | 40 |
| Drill Point Length (mm) | 1.90 |
| Shank Type | Straight |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
