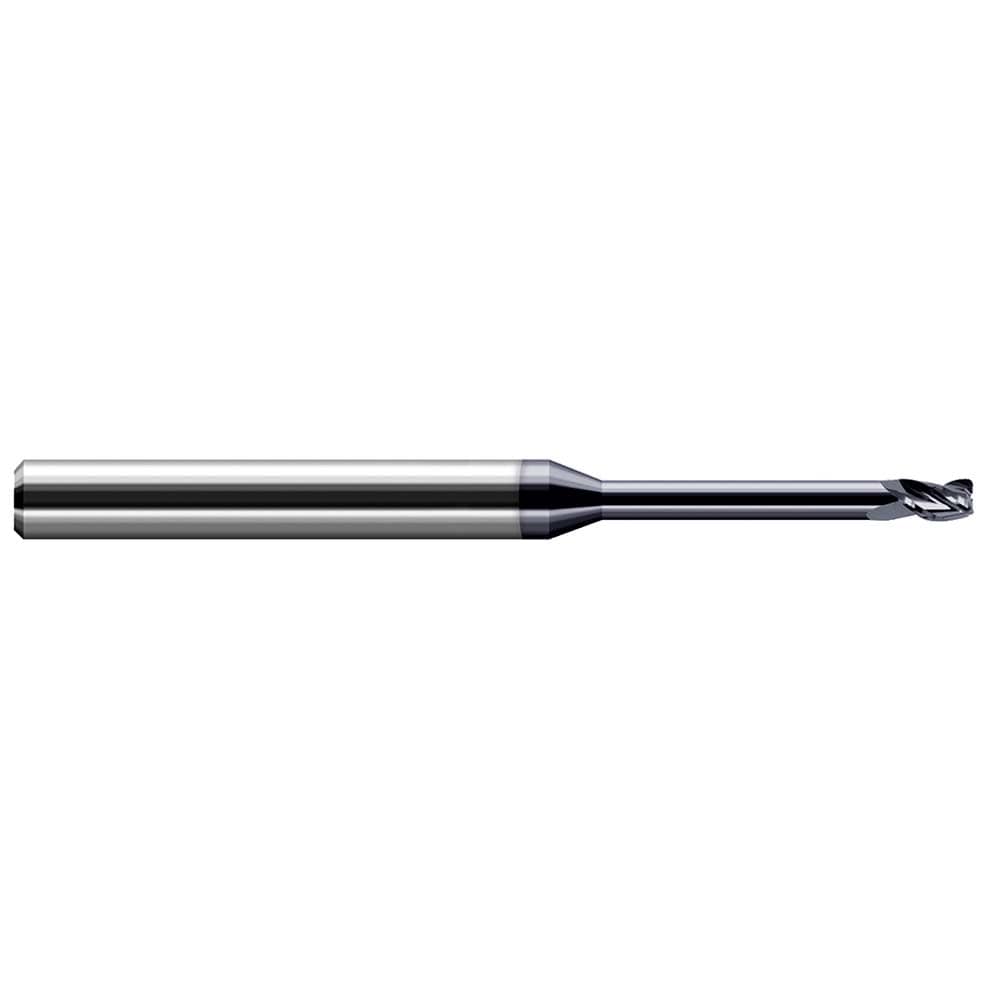

Corner Radius End Mill: 3/64" Dia, 0.07" LOC, 0.0050" Radius, 4 Flute, Solid Carbide
Item #: 06005706
Brand: Harvey Tool
Model #: 729447-C3
Product Specifications
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (Decimal Inch) | 0.047 |
| Mill Diameter (mm) | 1.2 |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0050 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0700 |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Reach Length (Decimal Inch) | 0.3750 |
| Reach Length (Inch) | 3/8 |
| UNSPSC Code | 27112803 |
| Series | Stub Flute; Miniature End Mills - Corner Radius - Long Reach |
