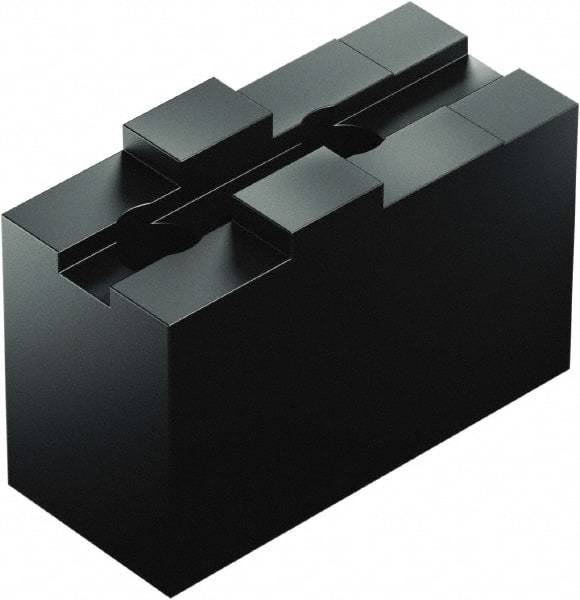

Schunk - 24" Max Chuck Capacity, Tongue & Groove Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 60mm Btw Mount Hole Ctrs, 80mm High, 18mm Groove, M16mm Fastener
Item #: 51161891
Brand: Schunk
Model #: 153104
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 24 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 24.0000 |
| Maximum Compatible Chuck Diameter (mm) | 630.00 |
| Minimum Compatible Chuck Diameter (mm) | 400.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 16.0000 |
| Minimum Compatible Chuck Diameter (Inch) | 16 |
| Overall Height (mm) | 80.00 |
| Overall Height (Decimal Inch) | 3.1496 |
| Groove Width (mm) | 18.00 |
| Groove Width (Decimal Inch) | 0.7087 |
| Distance Between Mount Hole Centers (mm) | 60.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 2.3622 |
| Tongue Width (Decimal Inch) | 1.1811 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M16 |
| Number of Jaws | 3 |
