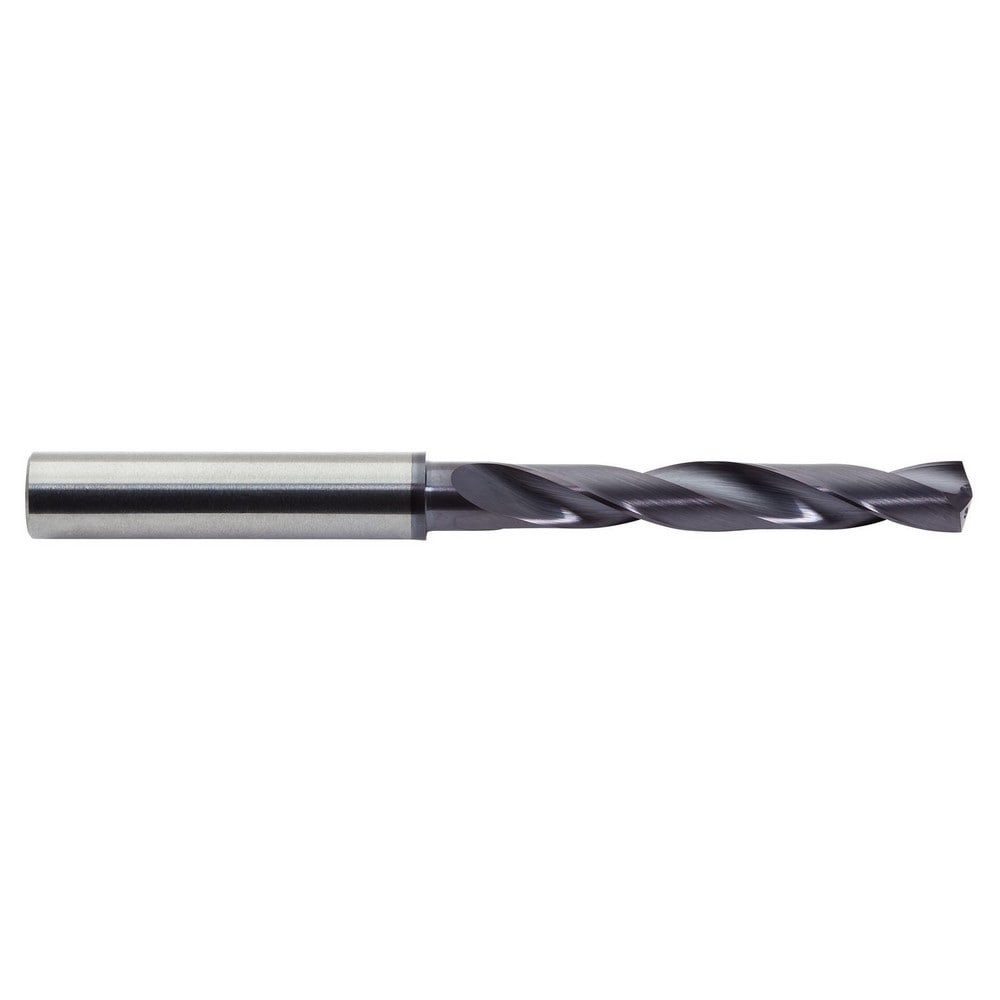

Jobber Drill: 1/2" Dia, 142 deg Point, Solid Carbide
Item #: 83967760
Brand: M.A. Ford
Model #: 2XDCR5000A
Product Specifications
| Drill Bit Size (Inch) | 1/2 |
| Drill Bit Size (Decimal Inch) | 0.5000 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 142 |
| Coating/Finish | AlTiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | S; H; M |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 120.65 |
| Overall Length (Decimal Inch) | 4.7500 |
| Spiral Type | Regular |
| Flute Length (mm) | 71.88 |
| Flute Length (Decimal Inch) | 2.8300 |
| Proprietary Coating/Finish | ALtima |
| Series | 2XDCR |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 1/2 |
| Maximum Drilling Depth (Decimal Inch) | 2.2600 |
| Drill Point Length (Decimal Inch) | 0.0770 |
| Drill Bit Diameter Tolerance | +0.00000 to -0.00071 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | DIN 6537 K; ISO 9001:2015 Certified |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
