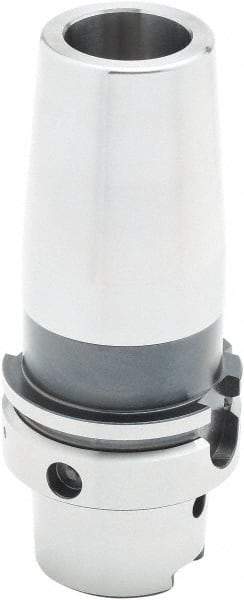

Parlec - 12mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 90mm Projection, 24mm Nose Diam, 47mm Clamping Depth, 20,000 RPM, Through Coolant
Item #: 50813245
Brand: Parlec
Model #: H63A-M12SF90-9
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Projection (mm) | 90.00 |
| Projection (Decimal Inch) | 3.5433 |
| Nose Diameter (mm) | 24.00 |
| Nose Diameter (Decimal Inch) | 0.9449 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 47.00 |
| Clamping Depth (Decimal Inch) | 1.8504 |
| Overall Length (mm) | 122.00 |
| Overall Length (Decimal Inch) | 4.8032 |
| Balanced to (RPM) | 20000 |
