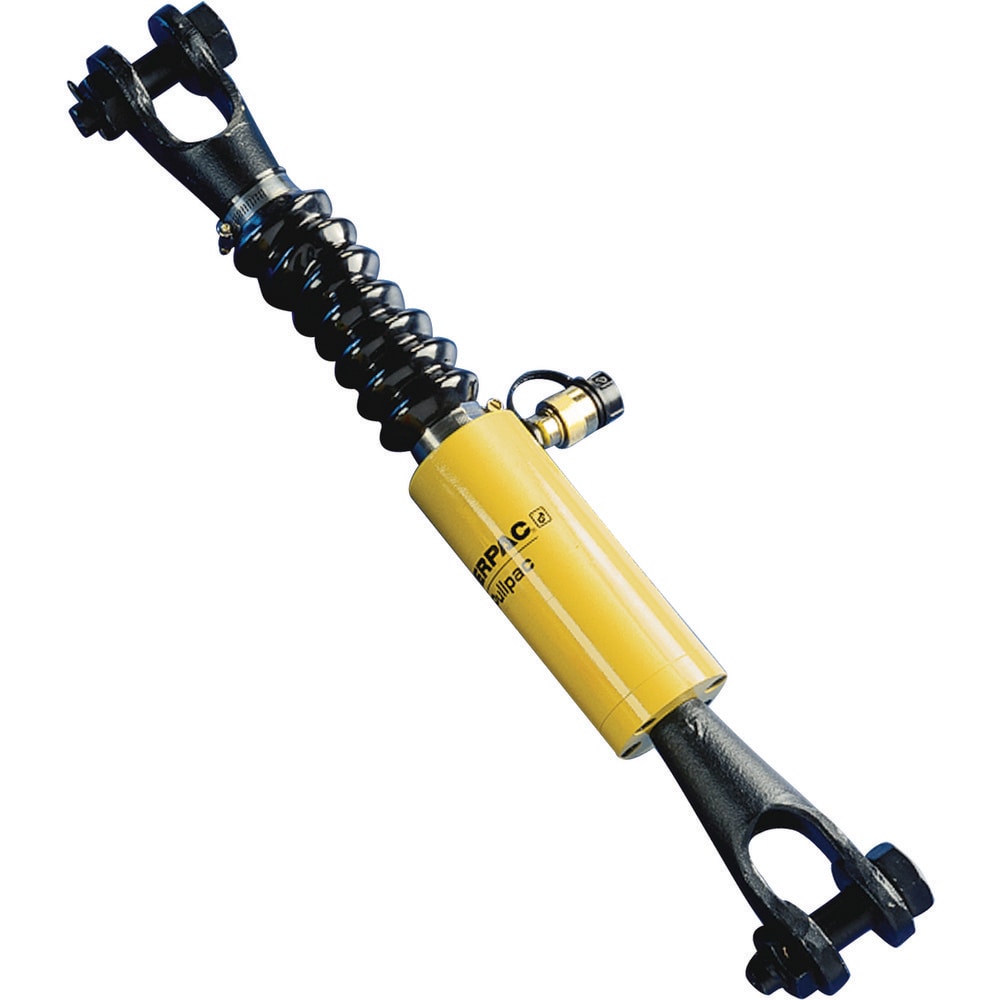

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 12; Stroke Length: 6.00; Oil Capacity: 14.58; Cylinder Bore Diameter (Decimal Inch): 2.13; Cylinder Effective Area: 1; Lowered Height: 22.56
Item #: 92749738
Brand: Enerpac
Model #: BRP106L
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 12 |
| Stroke Length | 6.00 |
| Oil Capacity | 14.58 |
| Cylinder Bore Diameter (Decimal Inch) | 2.13 |
| Cylinder Effective Area | 1 |
| Lowered Height | 22.56 |
| Retracted Length | 23 |
| Extended Length | 28.46 |
| Cushion Type | No Cushion |
| Bore Diameter | 2.1300 |
| Outside Diameter | 3.35 in |
| Plunger Type | Solid |
| Maximum Working Pressure | 10000.000 |
| Body Material | Steel |
| Saddle Diameter | 2.52 |
| Series | BRP |
| Maximum Height (Inch) | 28.4600 |
| Includes | Slotted Link |
| UNSPSC Code | 27121602 |
| Country of Origin | Netherlands |
