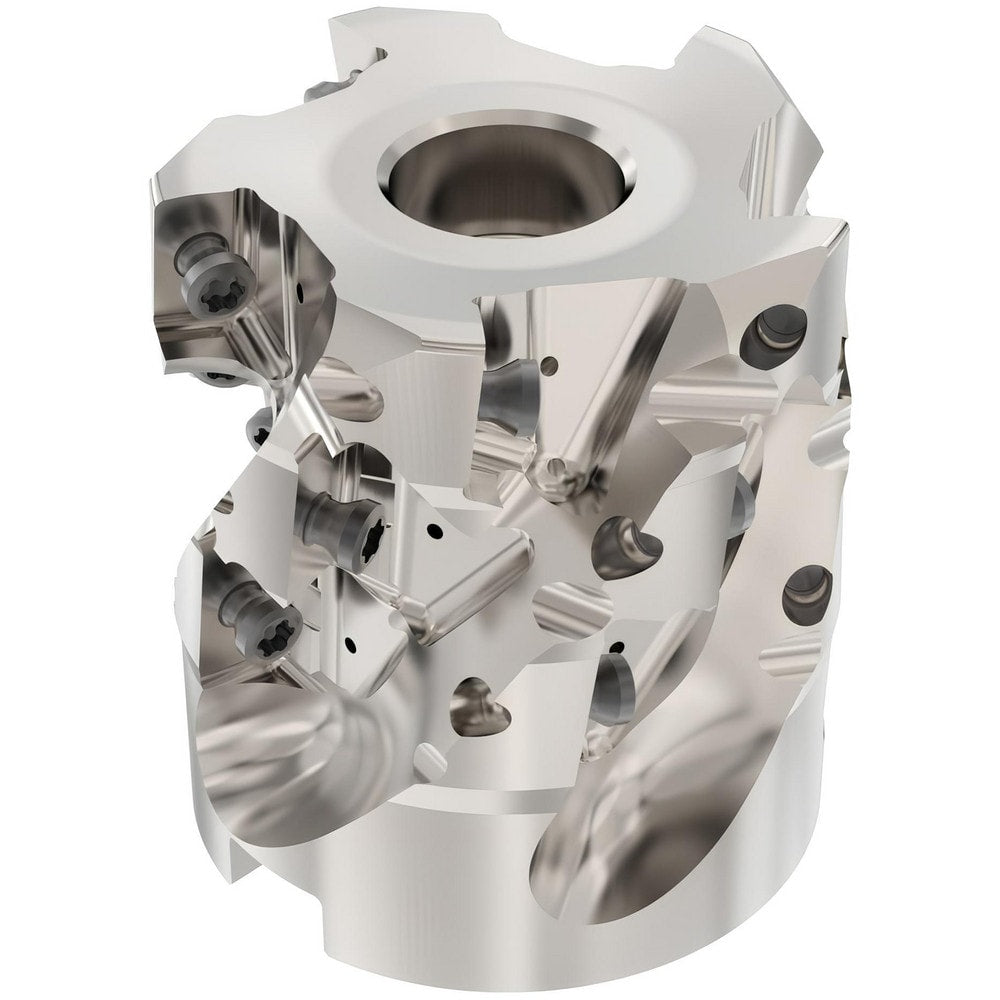

Indexable Square-Shoulder Face Mill: R220.690006304718.5AN, 1.0630" Arbor Hole Dia
Item #: 82761347
Brand: Seco
Model #: 10178497
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 47.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Compatible Insert Size Code | XO.X1806 |
| Cutter Style | R220.69 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Series | R220.69-18 |
| Maximum Ramping Angle | 1.5 |
| Maximum Body Diameter (mm) | 63.00 |
| Overall Height (Mm - 5 Decimals) | 70.00000 |
| Keyway Width (mm) | 12.40 |
| Hub Diameter (mm) | 59.000 |
| Pitch Type | Close |
| Maximum RPM | 7900.000 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Standards | ISO; ANSI |
| Number of Adjustable Pockets | 0 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | XO.X1806 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 10178497 |
| Maximum Insert Radius (Decimal Inch) | 0.1220 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 15 |
| Number Of Flutes | 5 |
| Country of Origin | France |
