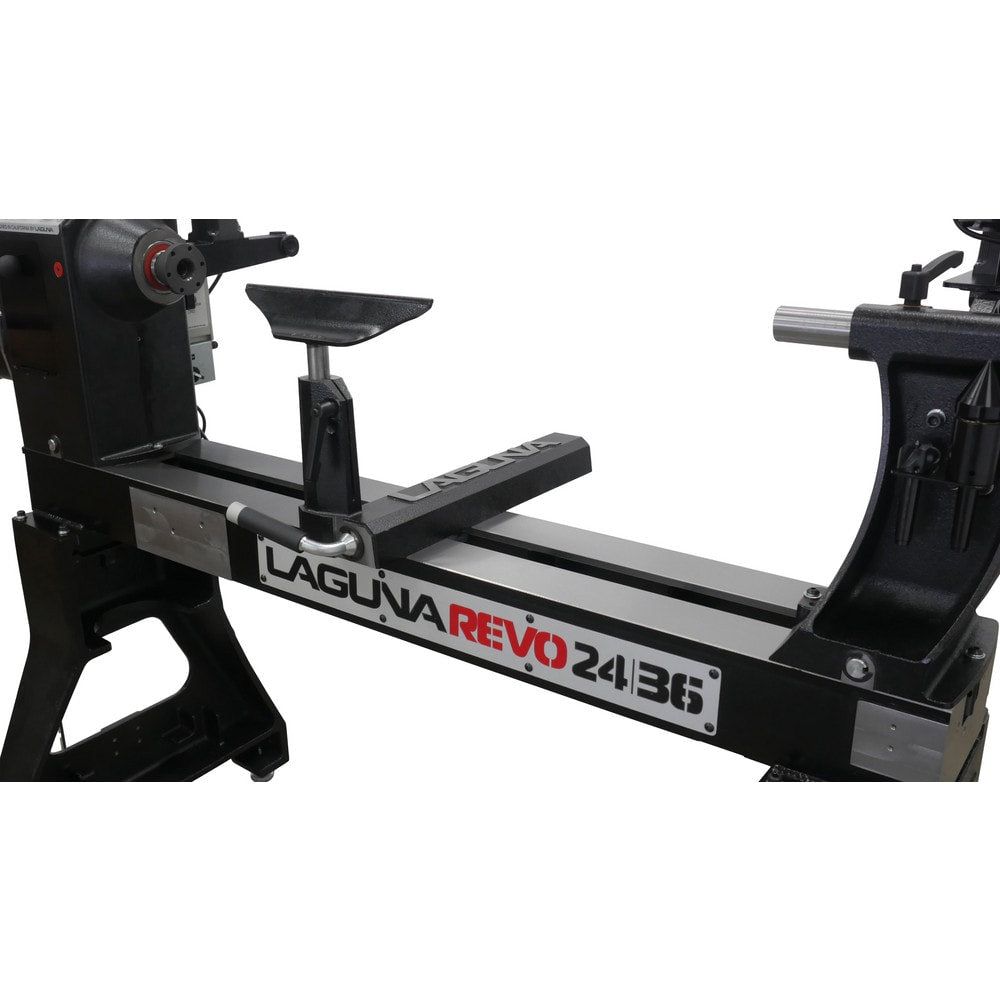

Woodworking Lathe: 24" Swing, 36" Between Centers, 3 HP, 220 V
Item #: 82745688
Brand: Laguna
Model #: MLAREVO 2436-220
Product Specifications
| Swing (Inch) | 24 |
| Distance Between Centers (Mm) | 914.4 |
| Distance Between Centers (Inch) | 36 |
| Distance Between Centers (Decimal Inch) | 36 |
| Distance Between Centers (Frac Inch) | 36 |
| Swing Over Tool Rest Base (Decimal Inch) | 19.75 |
| Face Plate Diameter (Decimal Inch) | 3 |
| Spindle Nose Designation | 1-1/4 in x 8 TPI Threaded |
| Tool Rest Size (Inch) | 12 |
| Headstock Taper Size | MT2 |
| Tailstock Taper Size | MT2 |
| Maximum Spindle Speed (Rpm) | 3500 |
| Maximum Spindle Speed (RPM) | 3500 |
| Minimum Spindle Speed (Rpm) | 50 |
| Minimum Spindle Speed (RPM) | 50 |
| Headstock Spindle Hole Size (Inch) | 3/8 in |
| Tailstock Spindle Hole Size (Inch) | 0.375 |
| Ram Travel (Inch) | 4.5 |
| Tailstock Quill Travel (Inch) | 4.5 |
| Bed Construction | Cast/Machined Steel |
| Horsepower (Hp) | 3 HP |
| Psc Code | 3220 |
| UNSPSC Code | 23101511 |
| Overall Depth (Decimal Inch) | 26 |
| Overall Height (Decimal Inch) | 52.25 in |
| Country of Origin | Taiwan |
