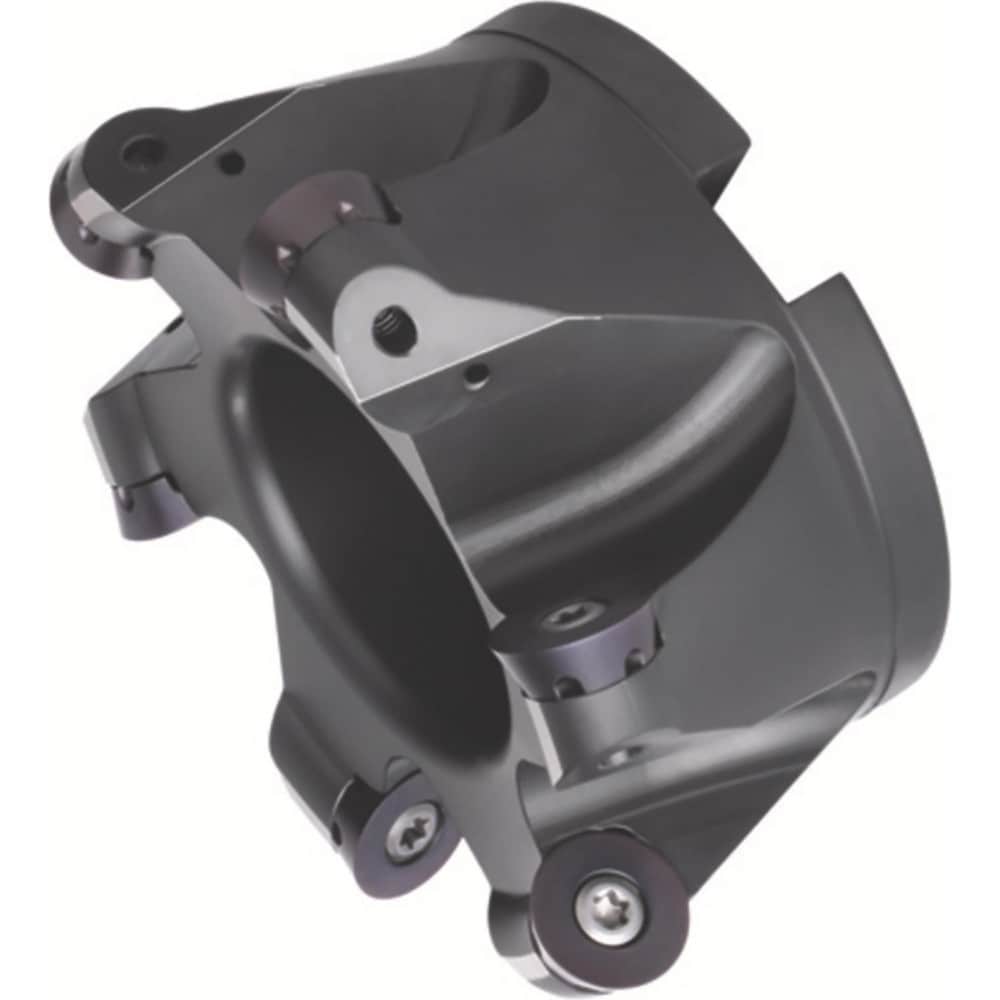

Indexable Copy Face Mills; Minimum Cutting Diameter (mm): 38.00; Cutting Diameter (mm): 50.00; Maximum Cutting Diameter (mm): 50.00; Maximum Depth of Cut (mm): 6.00
Item #: 85351302
Brand: Widia
Model #: 2021342
Product Specifications
| Minimum Cutting Diameter (mm) | 38.00 |
| Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | RD__1204 |
| Maximum Ramping Angle | 6.75 |
| Cutter Style | M100 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M100 |
| Hub Diameter (mm) | 60.000 |
| Keyway Width (mm) | 10.46 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Maximum RPM | 15000.000 |
| Tool Application | Facing; Profiling; Helical Interpolation; Pocketing; Shouldering; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Czechia |
