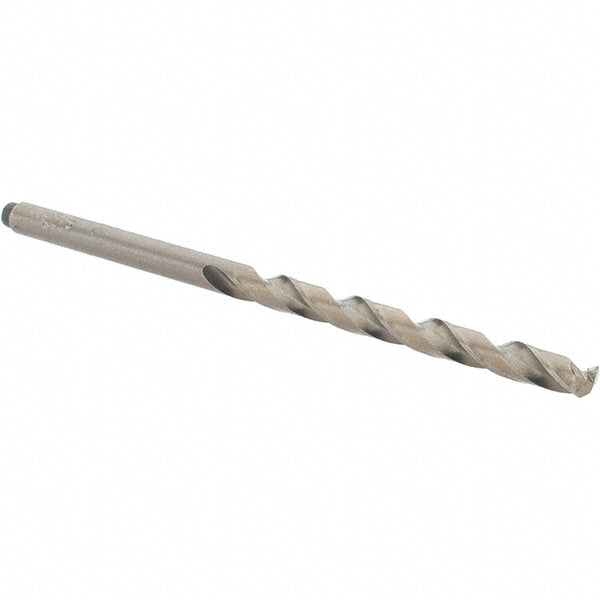

Jobber Drill: #30, 135 deg Point, Cobalt
Item #: 92843762
Brand: Made in USA
Model #: 08590
Product Specifications
| Drill Bit Size (Wire) | #30 |
| Drill Bit Size (Decimal Inch) | 0.1285 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | High-Temp Alloy; Composites; Stainless Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1-5/8 |
| Primary Workpiece Material Code | S; M |
| Shank Diameter (Decimal Inch) | 0.1285 |
| Overall Length (mm) | 69.85 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Spiral Type | Regular |
| Flute Length (mm) | 41.28 |
| Flute Length (Decimal Inch) | 1.6250 |
| Series | 240-D |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 13xD |
| Maximum Drilling Depth (Decimal Inch) | 1.6250 |
| Maximum Drilling Depth (Inch) | 1-5/8 |
| Shank Length (Decimal Inch) | 1.1250 |
| Shank Length (Inch) | 1-1/8 |
| Number of Flats | 0 |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
