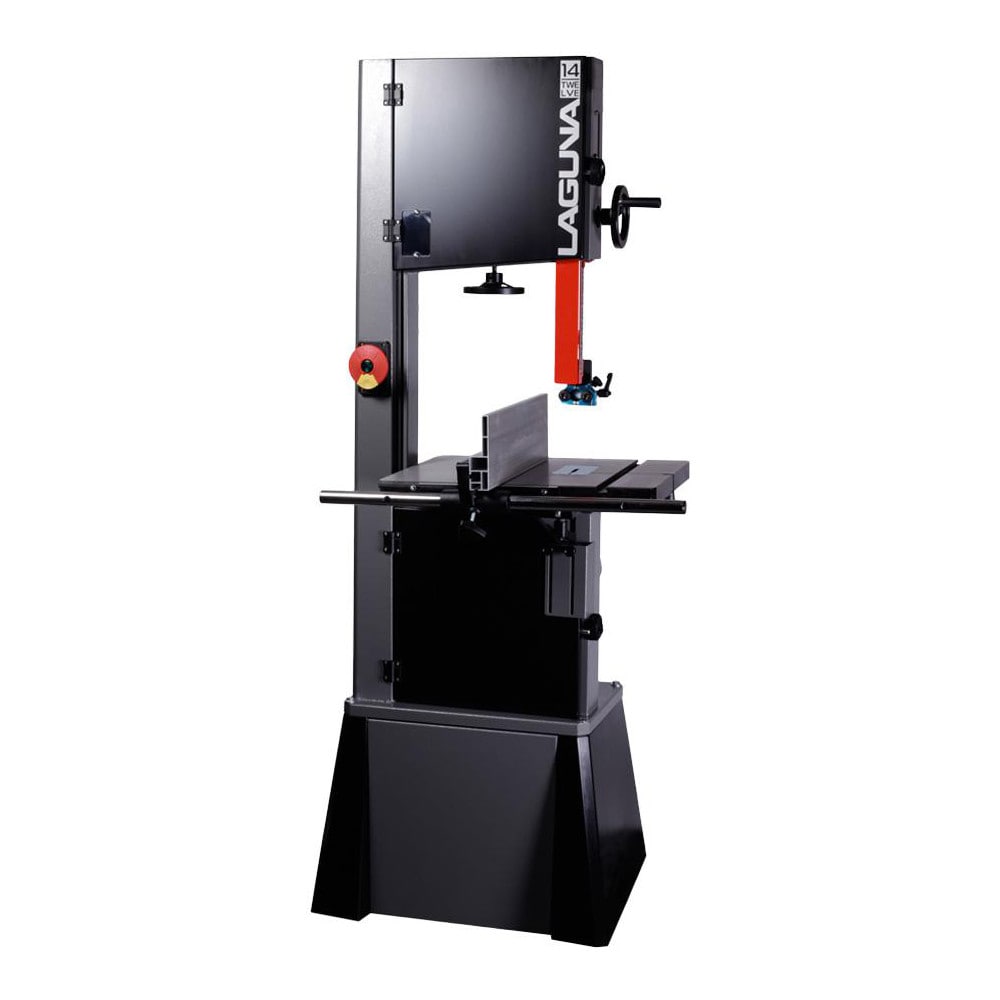

Vertical Bandsaws; Drive Type: Belt; Throat Capacity (Decimal Inch): 13.6250; Throat Capacity (Inch): 13-5/8; Throat Depth (Inch): 13-5/8; Height Capacity (Inch): 12; Phase: Single; Horsepower: 1.7500; Minimum Blade Speed: 3600
Item #: 82744699
Brand: Laguna
Model #: MBAND1412-175
Product Specifications
| Drive Type | Belt |
| Throat Capacity (Decimal Inch) | 13.6250 |
| Throat Capacity (Inch) | 13-5/8 |
| Throat Depth (Inch) | 13-5/8 |
| Height Capacity (Inch) | 12 |
| Phase | Single |
| Horsepower | 1.7500 |
| Minimum Blade Speed | 3600 |
| Maximum Blade Speed | 3600 |
| Blade Width (Inch - 0 Decimals) | 1/8 - 3/4 |
| Blade Length (Feet) | 9.58 |
| Blade Length (Decimal Inch) | 114.5700 |
| Blade Wheel Diameter (Inch) | 14 |
| Blade Guide Type | Laguna Ceramic |
| Capacity Under Guides | 12 in |
| Floor to Table Height (Inch) | 38 |
| Table Length (Inch) | 21-1/2 |
| Table Width (Inch) | 16 |
| Table Tilt Left (Degrees) | 7.00 |
| Table Tilt Right (Degrees) | 45.00 |
| Table Feed Operation | Manual |
| Frequency | 60 |
| Voltage | 110V |
| Base Width (Inch) | 25-1/4 |
| Base Depth (Inch) | 18-1/8 |
| Overall Height (Inch) | 70-1/4 |
| Overall Depth (Inch) | 26-7/8 |
| Overall Length (Inch) | 31-1/2 |
| Includes | Cast Table Trunnion.; Tracking Window; Metal Stand; Blade Tension Gauge With Window; Laguna Ceramic Guides; Cast Iron Wheels; Quick Tension Release |
| Standards | CSA |
| Special Item Information | Tilting Table; Laguna Ceramic Guides; Blade Tracking Window; Quick Release For Blade Tension; Blade Tension Window. |
| Certification | CSA |
| Warranty | 2 Year |
| Maximum Blade Working Height | 12 |
| Table Stroke | 16 |
| Number Of Slots | 1 |
| UNSPSC Code | 23231100 |
| Product Service Code | 3210 |
| Country of Origin | Taiwan |
