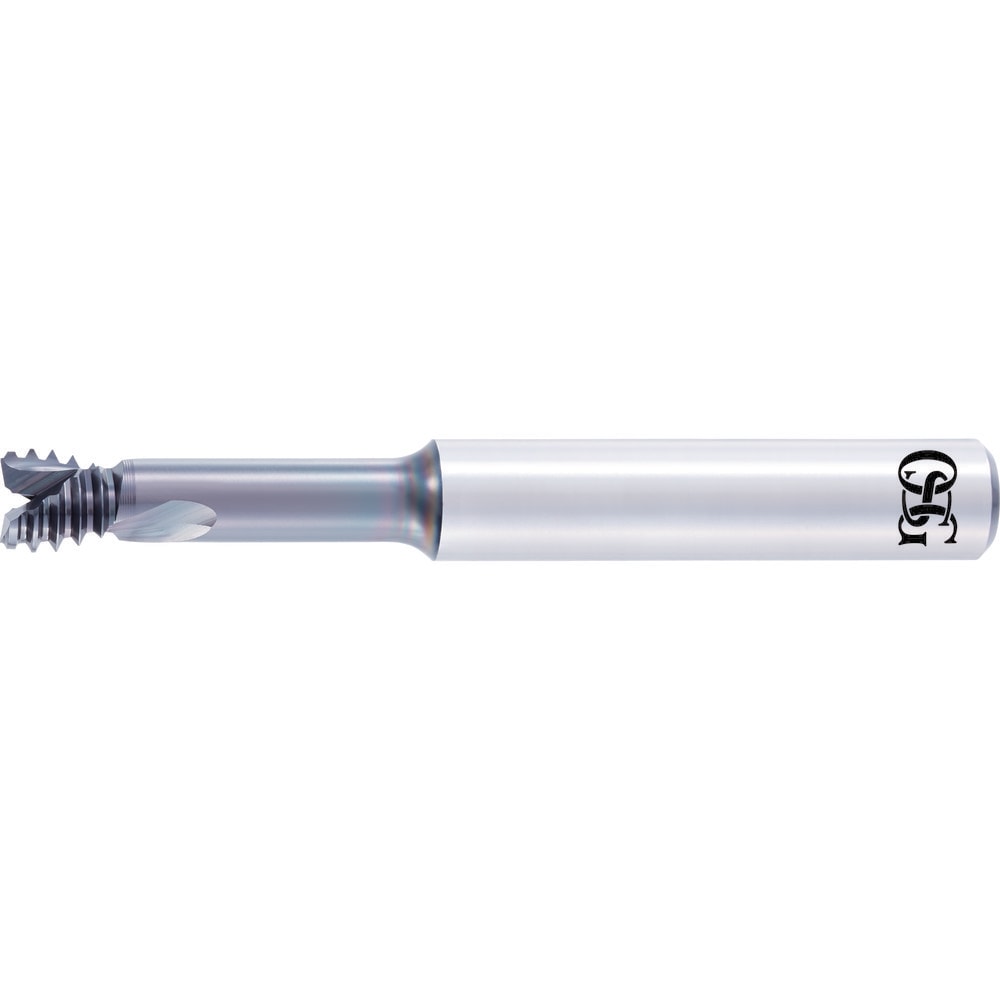

Helical Flute Thread Mill: 5/16-18, UNC, 2 Flute, 0.3750" Shank Dia, Solid Carbide
Item #: 79382057
Brand: OSG
Model #: 1664700709
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 5/16-18 |
| Thread Type | UNC |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.2240 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.278 |
| Overall Length (Decimal Inch) | 3.5 |
| Thread Standard | UNC |
| Thread Mill Type | Long Reach |
| Flute Direction | Left Hand |
| Series | 16647 |
| Shank Diameter Tolerance (mm) | h6 |
| Number Of Flutes | 2 |
| Coating/Finish | DLC-IGUSS |
| Coolant Through | Yes |
| Teeth Per Inch | 18 |
| UNSPSC Code | 23291800 |
| Country of Origin | Japan |
